Battery for HYUNDAI ELANTRA Sedan (XD)
Compatible Car Batteries for HYUNDAI ELANTRA Sedan (XD)
Model years: 03.2000 - 07.2006. Car body type: Sedan
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI ELANTRA Sedan (XD) 1.6 | 06.2000 - 07.2006 |
9.53” x 6.89” x 7.48” 242 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.19” x 6.85” x 6.89” 208 x 174 x 175 mm |
| HYUNDAI ELANTRA Sedan (XD) 2.0 | 06.2000 - 07.2006 |
9.53” x 6.89” x 7.48” 243 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 242 x 175 x 190 mm |
8.19” x 6.85” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI ELANTRA Sedan (XD) 1.8 | 06.2000 - 07.2006 |
9.53” x 6.89” x 7.48” 518 x 279 x 240 mm |
8.15” x 6.89” x 7.48” 242 x 175 x 190 mm |
8.19” x 6.85” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI ELANTRA Sedan (XD) 2.0 | 06.2000 - 07.2006 |
9.53” x 6.89” x 7.48” 518 x 279 x 240 mm |
8.15” x 6.89” x 7.48” 242 x 175 x 190 mm |
8.19” x 6.85” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI ELANTRA Sedan (XD) 2.0 CRDi | 04.2001 - 07.2006 |
9.53” x 6.89” x 7.48” 518 x 279 x 240 mm |
8.15” x 6.89” x 7.48” 270 x 173 x 222 mm |
8.19” x 6.85” x 6.89” 242 x 175 x 190 mm |
| HYUNDAI ELANTRA Sedan (XD) 2.0 | 10.2003 - 07.2006 |
9.53” x 6.89” x 7.48” 513 x 226 x 223 mm |
8.15” x 6.89” x 7.48” 242 x 175 x 190 mm |
8.19” x 6.85” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI ELANTRA Sedan (XD) 1.6 | 05.2003 - 07.2006 |
9.53” x 6.89” x 7.48” 518 x 279 x 240 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.19” x 6.85” x 6.89” 208 x 174 x 175 mm |
| HYUNDAI ELANTRA Sedan (XD) 1.8 | 06.2000 - 07.2003 |
9.53” x 6.89” x 7.48” 518 x 279 x 240 mm |
8.15” x 6.89” x 7.48” 513 x 223 x 223 mm |
8.19” x 6.85” x 6.89” 513 x 223 x 223 mm |
| HYUNDAI ELANTRA Sedan (XD) 1.6 | 06.2000 - 07.2006 |
9.53” x 6.89” x 7.48” 242 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.19” x 6.85” x 6.89” 208 x 174 x 175 mm |
| HYUNDAI ELANTRA Sedan (XD) 1.5 D | 06.2000 - 07.2006 |
9.53” x 6.89” x 7.48” 271 x 175 x 220 mm |
8.15” x 6.89” x 7.48” 260 x 170 x 220 mm |
8.19” x 6.85” x 6.89” 260 x 170 x 220 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI ELANTRA Sedan (XD) 1.6 | 06.2000 - 07.2006 | 680 | 470 | 360 |
| HYUNDAI ELANTRA Sedan (XD) 2.0 | 06.2000 - 07.2006 | 680 | 540 | 460 |
| HYUNDAI ELANTRA Sedan (XD) 1.8 | 06.2000 - 07.2006 | 1450 | 600 | 420 |
| HYUNDAI ELANTRA Sedan (XD) 2.0 | 06.2000 - 07.2006 | 1450 | 610 | 460 |
| HYUNDAI ELANTRA Sedan (XD) 2.0 CRDi | 04.2001 - 07.2006 | 1450 | 630 | 510 |
| HYUNDAI ELANTRA Sedan (XD) 2.0 | 10.2003 - 07.2006 | 1150 | 610 | 460 |
| HYUNDAI ELANTRA Sedan (XD) 1.6 | 05.2003 - 07.2006 | 1150 | 530 | 360 |
| HYUNDAI ELANTRA Sedan (XD) 1.8 | 06.2000 - 07.2003 | 1450 | 1150 | 1000 |
| HYUNDAI ELANTRA Sedan (XD) 1.6 | 06.2000 - 07.2006 | 680 | 480 | 360 |
| HYUNDAI ELANTRA Sedan (XD) 1.5 D | 06.2000 - 07.2006 | 630 | 540 | 540 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI ELANTRA Sedan (XD) 1.6 | 06.2000 - 07.2006 | 66 | 52 | 44 |
| HYUNDAI ELANTRA Sedan (XD) 2.0 | 06.2000 - 07.2006 | 66 | 62 | 54 |
| HYUNDAI ELANTRA Sedan (XD) 1.8 | 06.2000 - 07.2006 | 240 | 62 | 50 |
| HYUNDAI ELANTRA Sedan (XD) 2.0 | 06.2000 - 07.2006 | 240 | 63 | 54 |
| HYUNDAI ELANTRA Sedan (XD) 2.0 CRDi | 04.2001 - 07.2006 | 240 | 75 | 60 |
| HYUNDAI ELANTRA Sedan (XD) 2.0 | 10.2003 - 07.2006 | 185 | 62 | 54 |
| HYUNDAI ELANTRA Sedan (XD) 1.6 | 05.2003 - 07.2006 | 225 | 54 | 44 |
| HYUNDAI ELANTRA Sedan (XD) 1.8 | 06.2000 - 07.2003 | 235 | 185 | 170 |
| HYUNDAI ELANTRA Sedan (XD) 1.6 | 06.2000 - 07.2006 | 66 | 53 | 45 |
| HYUNDAI ELANTRA Sedan (XD) 1.5 D | 06.2000 - 07.2006 | 70 | 70 | 70 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: BOSCH Battery Code: 0 092 S50 050 Voltage: 12 V Battery Capacity: 63 AH Cold Cranking Amps (CCA): 610 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L31B Length: 242 Width: 174 Height: 190 Voltage: 12 V Battery Capacity: 55 AH Cold Cranking Amps (CCA) DIN: 270 A Cold Cranking Amps (CCA): 450 A |  |
Battery Brand: DETA Battery Code: DC440 Voltage: 12 V Battery Capacity: 44 AH Cold Cranking Amps (CCA): 360 A Length: 207 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |

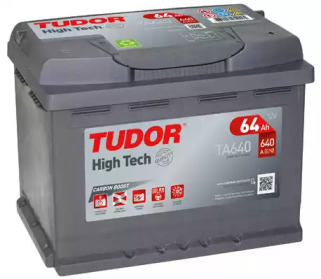

Battery Brand: TUDOR Battery Code: TA640 Voltage: 12 V Battery Capacity: 64 AH Cold Cranking Amps (CCA): 640 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 050 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: EXIDE Battery Code: EC550 Voltage: 12 V Battery Capacity: 55 AH Cold Cranking Amps (CCA): 460 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: TUDOR Battery Code: TF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: EXIDE Battery Code: EA640 Voltage: 12 V Battery Capacity: 64 AH Cold Cranking Amps (CCA): 640 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: DETA Battery Code: DF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: DETA Battery Code: DA640 Voltage: 12 V Battery Capacity: 64 AH Cold Cranking Amps (CCA): 640 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: EXIDE Battery Code: EA754 Voltage: 12 V Battery Capacity: 75 AH Cold Cranking Amps (CCA): 630 A Length: 270 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: NPS Battery Code: U540L23B Length: 257 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA) DIN: 310 A Cold Cranking Amps (CCA): 510 A |  |
Battery Brand: DETA Battery Code: DF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 226 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B0 |  |
Battery Brand: EXIDE Battery Code: EF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: OPEN PARTS Battery Code: BT050L1.00 Battery Capacity: 50 AH Voltage: 12 V Cold Cranking Amps (CCA): 500 A Length: 207 Width: 175 Height: 190 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: EXIDE Battery Code: EC440 Voltage: 12 V Battery Capacity: 44 AH Cold Cranking Amps (CCA): 360 A Length: 207 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: BOSCH Battery Code: 0 092 TE0 800 Voltage: 12 V Battery Capacity: 225 AH Cold Cranking Amps (CCA): 1150 A Length: 518 Width: 276 Height: 242 Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: BOSCH Battery Code: 0 092 T40 770 Voltage: 12 V Battery Capacity: 170 AH Cold Cranking Amps (CCA): 1000 A Length: 513 Width: 223 Height: 223 Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: VMF Battery Code: 55054 Voltage: 12 V Battery Capacity: 52 AH Height: 190 Width: 175 Length: 207 Cold Cranking Amps (CCA): 470 A Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L36B Length: 208 Width: 174 Height: 175 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA) DIN: 220 A Cold Cranking Amps (CCA): 360 A |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 270 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 630 A Length: 271 Width: 175 Height: 220 Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: COMLINE Battery Code: CB031PL Hold-down Type: B0 Voltage: 12 V Cold Cranking Amps (CCA): 540 A Battery Capacity: 70 AH Post Positions: 1 Filled Weight: 15.6 kg Length: 260 Width: 170 Height: 220 |  |
