Battery for HYUNDAI GALLOPER II (Generation 2) (JK-01)
Compatible Car Batteries for HYUNDAI GALLOPER II (2) (JK-01)
Model years: 02.1997 - 12.2003. Car body type: Closed Off-Road Vehicle
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI GALLOPER II (2) (JK-01) 3.0 V6 | 08.1998 - 12.2003 |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
13.9” x 6.89” x 7.48” 353 x 175 x 190 mm |
10.12” x 6.77” x 7.87” 257 x 172 x 200 mm |
| HYUNDAI GALLOPER II (2) (JK-01) 2.5 TD intercooler | 08.1998 - 12.2003 |
12.05” x 6.81” x 8.74” 303 x 175 x 227 mm |
13.9” x 6.89” x 7.48” 353 x 175 x 190 mm |
10.12” x 6.77” x 7.87” 302 x 172 x 200 mm |
| HYUNDAI GALLOPER II (2) (JK-01) 2.5 TCi D | 08.1998 - 12.2003 |
12.05” x 6.81” x 8.74” 518 x 279 x 240 mm |
13.9” x 6.89” x 7.48” 513 x 223 x 223 mm |
10.12” x 6.77” x 7.87” 302 x 172 x 200 mm |
| HYUNDAI GALLOPER II (2) (JK-01) 2.5 TD | 08.1998 - 12.2003 |
12.05” x 6.81” x 8.74” 518 x 279 x 240 mm |
13.9” x 6.89” x 7.48” 513 x 223 x 223 mm |
10.12” x 6.77” x 7.87” 302 x 172 x 200 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI GALLOPER II (2) (JK-01) 3.0 V6 | 08.1998 - 12.2003 | 900 | 800 | 510 |
| HYUNDAI GALLOPER II (2) (JK-01) 2.5 TD intercooler | 08.1998 - 12.2003 | 900 | 800 | 640 |
| HYUNDAI GALLOPER II (2) (JK-01) 2.5 TCi D | 08.1998 - 12.2003 | 1450 | 1000 | 640 |
| HYUNDAI GALLOPER II (2) (JK-01) 2.5 TD | 08.1998 - 12.2003 | 1450 | 1000 | 640 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI GALLOPER II (2) (JK-01) 3.0 V6 | 08.1998 - 12.2003 | 100 | 95 | 60 |
| HYUNDAI GALLOPER II (2) (JK-01) 2.5 TD intercooler | 08.1998 - 12.2003 | 100 | 95 | 90 |
| HYUNDAI GALLOPER II (2) (JK-01) 2.5 TCi D | 08.1998 - 12.2003 | 235 | 170 | 90 |
| HYUNDAI GALLOPER II (2) (JK-01) 2.5 TD | 08.1998 - 12.2003 | 235 | 170 | 90 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|

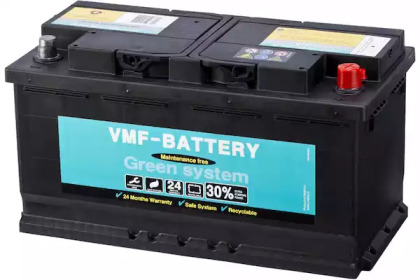

Battery Brand: VMF Battery Code: 60038 Voltage: 12 V Battery Capacity: 100 AH Height: 190 Width: 175 Length: 353 Cold Cranking Amps (CCA): 830 A Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: TUDOR Battery Code: TB955 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |

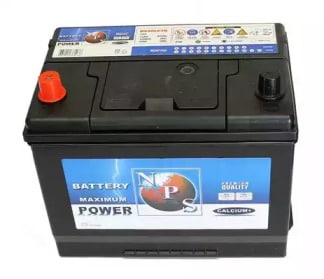

Battery Brand: NPS Battery Code: U540L67B Length: 257 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA) DIN: 310 A Cold Cranking Amps (CCA): 510 A |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 290 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Length: 306 Width: 173 Height: 225 Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: EXIDE Battery Code: EA955 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 800 A Length: 306 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: NPS Battery Code: U540L35B Length: 302 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 90 AH Cold Cranking Amps (CCA) DIN: 395 A Cold Cranking Amps (CCA): 640 A |  |
Battery Brand: DETA Battery Code: DF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |

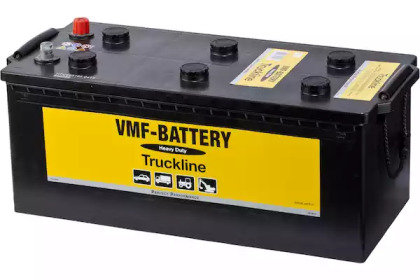

Battery Brand: VMF Battery Code: 66514 Voltage: 12 V Battery Capacity: 170 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 1000 A Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
