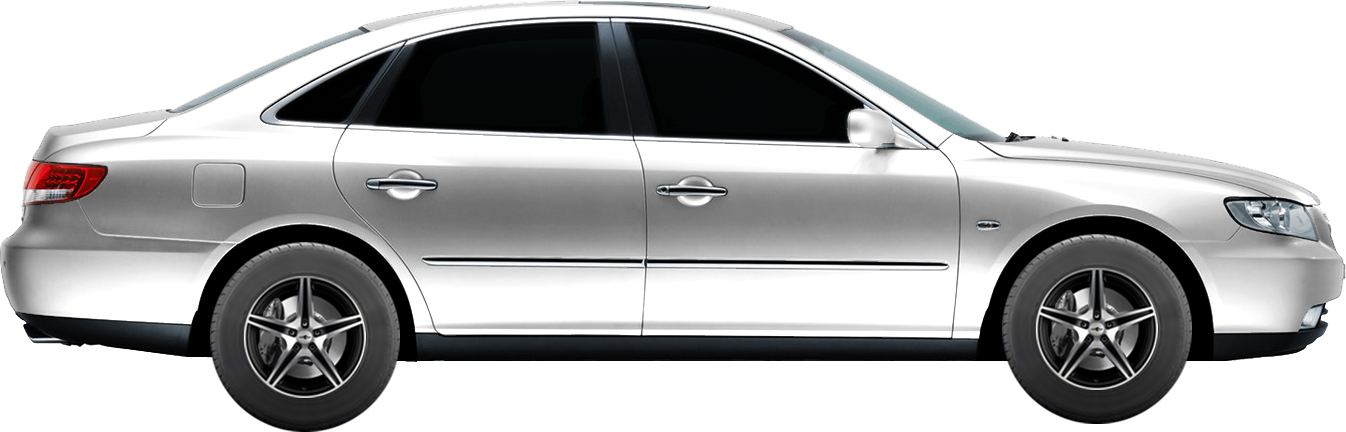

Battery for HYUNDAI GRANDEUR (TG)
Compatible Car Batteries for HYUNDAI GRANDEUR (TG)
Model years: since 06.2003. Car body type: Sedan
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI GRANDEUR (TG) 3.3 | 11.2010 - 12.2011 |
20.2” x 8.78” x 8.78” 513 x 223 x 223 mm |
20.2” x 7.44” x 8.66” 513 x 189 x 220 mm |
9.57” x 6.89” x 7.48” 243 x 175 x 190 mm |
| HYUNDAI GRANDEUR (TG) 3.3 | 04.2005 - 12.2010 |
20.2” x 8.78” x 8.78” 304 x 174 x 225 mm |
20.2” x 7.44” x 8.66” 278 x 175 x 190 mm |
9.57” x 6.89” x 7.48” 243 x 175 x 190 mm |
| HYUNDAI GRANDEUR (TG) 3.8 | 06.2005 - 12.2011 |
20.2” x 8.78” x 8.78” 518 x 279 x 240 mm |
20.2” x 7.44” x 8.66” 518 x 279 x 240 mm |
9.57” x 6.89” x 7.48” 518 x 279 x 240 mm |
| HYUNDAI GRANDEUR (TG) 2.2 CRDi | 06.2006 - 12.2011 |
20.2” x 8.78” x 8.78” 269 x 174 x 225 mm |
20.2” x 7.44” x 8.66” 261 x 175 x 220 mm |
9.57” x 6.89” x 7.48” 278 x 175 x 175 mm |
| HYUNDAI GRANDEUR (TG) 2.2 CRDi | 06.2006 - 10.2010 |
20.2” x 8.78” x 8.78” 269 x 174 x 225 mm |
20.2” x 7.44” x 8.66” 261 x 175 x 220 mm |
9.57” x 6.89” x 7.48” 278 x 175 x 175 mm |
| HYUNDAI GRANDEUR (TG) 2.7 | 05.2006 - 10.2010 |
20.2” x 8.78” x 8.78” 278 x 175 x 190 mm |
20.2” x 7.44” x 8.66” 278 x 175 x 190 mm |
9.57” x 6.89” x 7.48” 278 x 175 x 175 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI GRANDEUR (TG) 3.3 | 11.2010 - 12.2011 | 1100 | 760 | 620 |
| HYUNDAI GRANDEUR (TG) 3.3 | 04.2005 - 12.2010 | 780 | 700 | 550 |
| HYUNDAI GRANDEUR (TG) 3.8 | 06.2005 - 12.2011 | 1450 | 1450 | 1450 |
| HYUNDAI GRANDEUR (TG) 2.2 CRDi | 06.2006 - 12.2011 | 780 | 630 | 540 |
| HYUNDAI GRANDEUR (TG) 2.2 CRDi | 06.2006 - 10.2010 | 780 | 630 | 540 |
| HYUNDAI GRANDEUR (TG) 2.7 | 05.2006 - 10.2010 | 780 | 680 | 630 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI GRANDEUR (TG) 3.3 | 11.2010 - 12.2011 | 200 | 120 | 62 |
| HYUNDAI GRANDEUR (TG) 3.3 | 04.2005 - 12.2010 | 90 | 74 | 60 |
| HYUNDAI GRANDEUR (TG) 3.8 | 06.2005 - 12.2011 | 235 | 235 | 235 |
| HYUNDAI GRANDEUR (TG) 2.2 CRDi | 06.2006 - 12.2011 | 77 | 70 | 68 |
| HYUNDAI GRANDEUR (TG) 2.2 CRDi | 06.2006 - 10.2010 | 77 | 70 | 68 |
| HYUNDAI GRANDEUR (TG) 2.7 | 05.2006 - 10.2010 | 80 | 74 | 70 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|

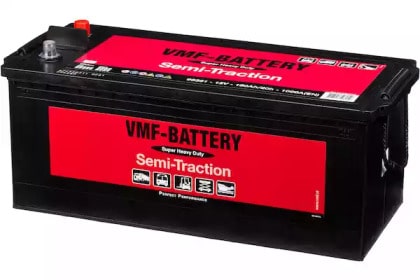

Battery Brand: VMF Battery Code: 96351 Voltage: 12 V Battery Capacity: 180 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 1000 A Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L51B Length: 277 Width: 174 Height: 190 Voltage: 12 V Cold Cranking Amps (CCA): 760 A Specification: AGM Battery Capacity: 70 AH |  |

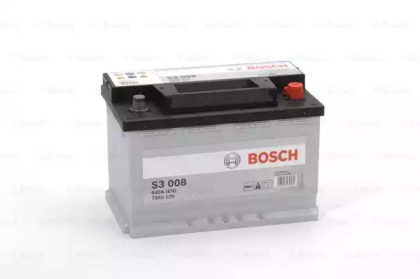

Battery Brand: BOSCH Battery Code: 0 092 S30 080 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 640 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |

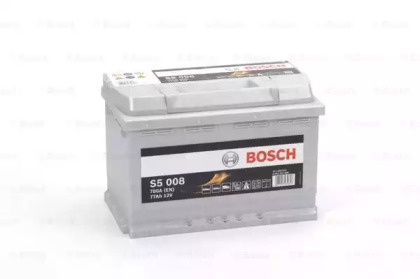

Battery Brand: BOSCH Battery Code: 0 092 S50 080 Voltage: 12 V Battery Capacity: 77 AH Cold Cranking Amps (CCA): 780 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 5740120683132 Voltage: 12 V Battery Capacity: 74 AH Cold Cranking Amps (CCA): 680 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 278 Width: 175 Height: 190 |  |
Battery Brand: DETA Battery Code: DF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: EXIDE Battery Code: EF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: TUDOR Battery Code: TF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: EXIDE Battery Code: EA754 Voltage: 12 V Battery Capacity: 75 AH Cold Cranking Amps (CCA): 630 A Length: 270 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: TUDOR Battery Code: TB704 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 540 A Length: 270 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: B9 |  |
Battery Brand: DETA Battery Code: DB740 Voltage: 12 V Battery Capacity: 74 AH Cold Cranking Amps (CCA): 680 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
