Battery for HYUNDAI H-1 Box
Compatible Car Batteries for HYUNDAI H-1 Box
Model years: 10.1997 - 04.2008. Car body type: Box
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI H-1 Box 2.5 TD | 03.2000 - 09.2000 |
11.93” x 6.89” x 8.94” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
11.89” x 6.77” x 7.87” 302 x 172 x 200 mm |
| HYUNDAI H-1 Box 2.4 | 03.2000 - 04.2004 |
11.93” x 6.89” x 8.94” 303 x 174 x 222 mm |
12.05” x 6.81” x 8.74” 278 x 175 x 190 mm |
11.89” x 6.77” x 7.87” 230 x 172 x 200 mm |
| HYUNDAI H-1 Box 2.5 TD | 03.2000 - 04.2004 |
11.93” x 6.89” x 8.94” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
11.89” x 6.77” x 7.87” 302 x 172 x 200 mm |
| HYUNDAI H-1 Box 2.5 TD | 10.2001 - 08.2007 |
11.93” x 6.89” x 8.94” 518 x 291 x 242 mm |
12.05” x 6.81” x 8.74” 513 x 223 x 223 mm |
11.89” x 6.77” x 7.87” 302 x 172 x 200 mm |
| HYUNDAI H-1 Box 2.5 CRDi | 08.2003 - 12.2007 |
11.93” x 6.89” x 8.94” 513 x 226 x 223 mm |
12.05” x 6.81” x 8.74” 512 x 223 x 220 mm |
11.89” x 6.77” x 7.87” 302 x 172 x 200 mm |
| HYUNDAI H-1 Box 2.5 CRDi | 07.2001 - 04.2004 |
11.93” x 6.89” x 8.94” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
11.89” x 6.77” x 7.87” 302 x 172 x 200 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI H-1 Box 2.5 TD | 03.2000 - 09.2000 | 850 | 800 | 640 |
| HYUNDAI H-1 Box 2.4 | 03.2000 - 04.2004 | 830 | 680 | 480 |
| HYUNDAI H-1 Box 2.5 TD | 03.2000 - 04.2004 | 850 | 800 | 640 |
| HYUNDAI H-1 Box 2.5 TD | 10.2001 - 08.2007 | 1450 | 1000 | 640 |
| HYUNDAI H-1 Box 2.5 CRDi | 08.2003 - 12.2007 | 1150 | 1000 | 640 |
| HYUNDAI H-1 Box 2.5 CRDi | 07.2001 - 04.2004 | 850 | 800 | 640 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI H-1 Box 2.5 TD | 03.2000 - 09.2000 | 100 | 95 | 90 |
| HYUNDAI H-1 Box 2.4 | 03.2000 - 04.2004 | 95 | 74 | 60 |
| HYUNDAI H-1 Box 2.5 TD | 03.2000 - 04.2004 | 100 | 95 | 90 |
| HYUNDAI H-1 Box 2.5 TD | 10.2001 - 08.2007 | 240 | 180 | 90 |
| HYUNDAI H-1 Box 2.5 CRDi | 08.2003 - 12.2007 | 185 | 170 | 90 |
| HYUNDAI H-1 Box 2.5 CRDi | 07.2001 - 04.2004 | 100 | 95 | 90 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: BOSCH Battery Code: 0 092 S40 280 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Length: 306 Width: 173 Height: 225 Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: VMF Battery Code: 60033 Voltage: 12 V Battery Capacity: 100 AH Height: 220 Width: 173 Length: 303 Cold Cranking Amps (CCA): 740 A Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L49B Length: 302 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA) DIN: 395 A Cold Cranking Amps (CCA): 640 A |  |

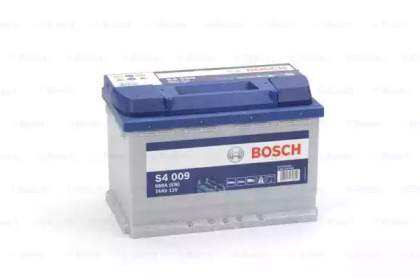

Battery Brand: BOSCH Battery Code: 0 092 S40 090 Voltage: 12 V Battery Capacity: 74 AH Cold Cranking Amps (CCA): 680 A Length: 278 Width: 175 Height: 190 Post Positions: 1 Hold-down Type: B13 Terminal Type: 1 |  |

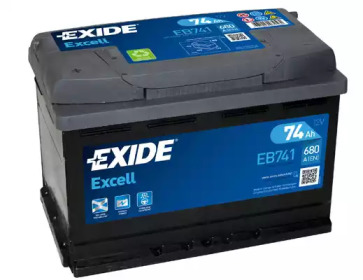

Battery Brand: EXIDE Battery Code: EB741 Voltage: 12 V Battery Capacity: 74 AH Cold Cranking Amps (CCA): 680 A Length: 278 Width: 175 Height: 190 Post Positions: 1 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: NPS Battery Code: U540L19B Length: 230 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA) DIN: 300 A Cold Cranking Amps (CCA): 480 A |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 290 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Length: 306 Width: 173 Height: 225 Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: EXIDE Battery Code: EF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |

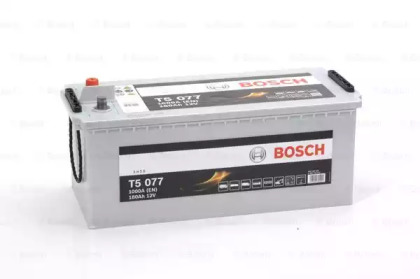

Battery Brand: BOSCH Battery Code: 0 092 T50 770 Voltage: 12 V Battery Capacity: 180 AH Cold Cranking Amps (CCA): 1000 A Length: 513 Width: 223 Height: 223 Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: TUDOR Battery Code: TF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: VARTA Battery Code: 5954050833132 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B01 Length: 306 Width: 173 Height: 225 |  |
