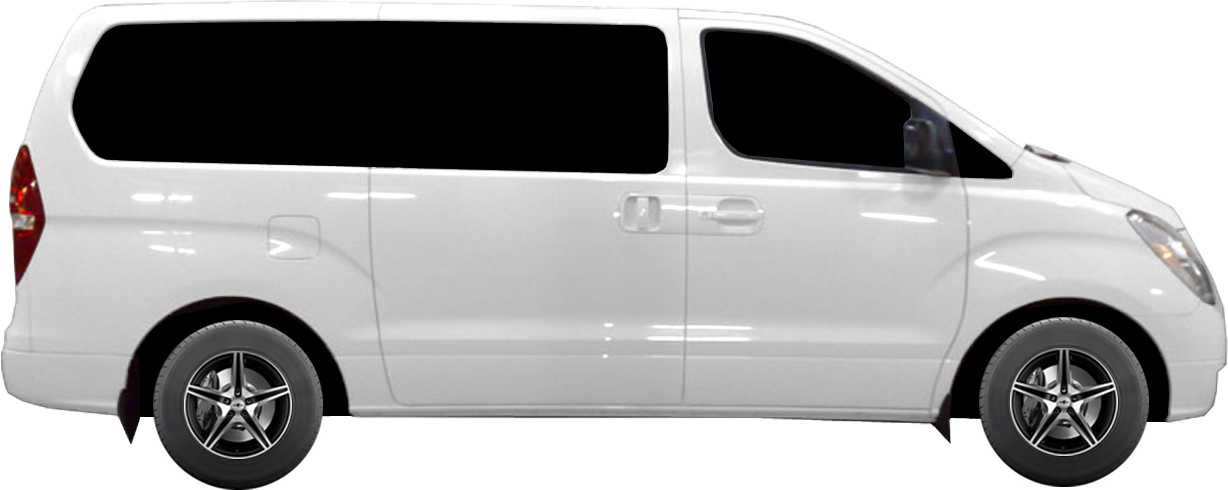

Battery for HYUNDAI H-1 Travel (TQ)
Compatible Car Batteries for HYUNDAI H-1 Travel (TQ)
Model years: since 02.2008. Car body type: Bus
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI H-1 Travel (TQ) 2.5 CRDI | since 07.2008 |
20.39” x 10.98” x 9.45” 518 x 279 x 240 mm |
12.99” x 6.77” x 9.45” 330 x 172 x 240 mm |
11.89” x 6.77” x 7.87” 302 x 172 x 200 mm |
| HYUNDAI H-1 Travel (TQ) 2.5 CRDi | since 05.2008 |
20.39” x 10.98” x 9.45” 330 x 172 x 240 mm |
12.99” x 6.77” x 9.45” 306 x 173 x 222 mm |
11.89” x 6.77” x 7.87” 302 x 172 x 200 mm |
| HYUNDAI H-1 Travel (TQ) 2.5 CRDi | since 08.2011 |
20.39” x 10.98” x 9.45” 303 x 175 x 227 mm |
12.99” x 6.77” x 9.45” 306 x 173 x 222 mm |
11.89” x 6.77” x 7.87” 302 x 172 x 200 mm |
| HYUNDAI H-1 Travel (TQ) 2.5 CRDi | since 07.2010 |
20.39” x 10.98” x 9.45” 330 x 172 x 240 mm |
12.99” x 6.77” x 9.45” 306 x 173 x 222 mm |
11.89” x 6.77” x 7.87” 303 x 173 x 220 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI H-1 Travel (TQ) 2.5 CRDI | since 07.2008 | 1450 | 850 | 640 |
| HYUNDAI H-1 Travel (TQ) 2.5 CRDi | since 05.2008 | 850 | 800 | 640 |
| HYUNDAI H-1 Travel (TQ) 2.5 CRDi | since 08.2011 | 850 | 800 | 640 |
| HYUNDAI H-1 Travel (TQ) 2.5 CRDi | since 07.2010 | 850 | 800 | 680 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI H-1 Travel (TQ) 2.5 CRDI | since 07.2008 | 235 | 102 | 90 |
| HYUNDAI H-1 Travel (TQ) 2.5 CRDi | since 05.2008 | 102 | 95 | 90 |
| HYUNDAI H-1 Travel (TQ) 2.5 CRDi | since 08.2011 | 100 | 95 | 90 |
| HYUNDAI H-1 Travel (TQ) 2.5 CRDi | since 07.2010 | 102 | 95 | 90 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: TUDOR Battery Code: TF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: VARTA Battery Code: 5954050833132 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B01 Length: 306 Width: 173 Height: 225 |  |
Battery Brand: NPS Battery Code: U540L47B Length: 302 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA) DIN: 395 A Cold Cranking Amps (CCA): 640 A |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 290 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Length: 306 Width: 173 Height: 225 Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: PLATINUM Battery Code: 250E Voltage: 12 V Battery Capacity: 90 AH Cold Cranking Amps (CCA): 740 A Cold Cranking Amps (CCA) DIN: 59005 A Length: 304 Width: 174 Height: 225 Post Positions: 1 Terminal Type: T1 Hold-down Type: B01 |  |
Battery Brand: VMF Battery Code: 60033 Voltage: 12 V Battery Capacity: 100 AH Height: 220 Width: 173 Length: 303 Cold Cranking Amps (CCA): 740 A Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |

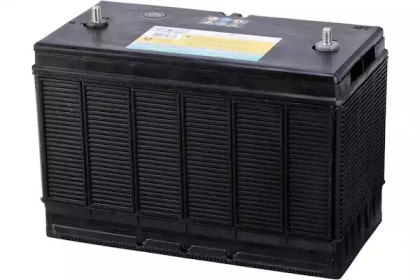

Battery Brand: VMF Battery Code: 60801 Voltage: 12 V Battery Capacity: 102 AH Height: 240 Width: 172 Length: 330 Cold Cranking Amps (CCA): 680 A Post Positions: 9 Hold-down Type: B01 Terminal Type: 8 |  |
