Battery for HYUNDAI i30 Station Wagon (GD)
Compatible Car Batteries for HYUNDAI i30 Station Wagon (GD)
Model years: since 06.2012. Car body type: Station Wagon
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI i30 Station Wagon (GD) 1.4 | 06.2012 - 12.2015 |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.15” x 6.89” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI i30 Station Wagon (GD) 1.6 | since 06.2012 |
8.15” x 6.89” x 7.48” 278 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.15” x 6.89” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI i30 Station Wagon (GD) 1.6 GDI | since 06.2012 |
8.15” x 6.89” x 7.48” 278 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.15” x 6.89” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI i30 Station Wagon (GD) 1.4 CRDi | since 06.2012 |
8.15” x 6.89” x 7.48” 278 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 232 x 173 x 225 mm |
8.15” x 6.89” x 6.89” 278 x 175 x 175 mm |
| HYUNDAI i30 Station Wagon (GD) 1.6 CRDi | 06.2012 - 12.2015 |
8.15” x 6.89” x 7.48” 278 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 277 x 174 x 190 mm |
8.15” x 6.89” x 6.89” 230 x 173 x 220 mm |
| HYUNDAI i30 Station Wagon (GD) 1.6 CRDi | since 06.2012 |
8.15” x 6.89” x 7.48” 278 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 277 x 174 x 190 mm |
8.15” x 6.89” x 6.89” 278 x 175 x 175 mm |
| HYUNDAI i30 Station Wagon (GD) 1.6 | 06.2012 - 12.2015 |
8.15” x 6.89” x 7.48” 278 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.15” x 6.89” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI i30 Station Wagon (GD) 1.4 | since 01.2015 |
8.15” x 6.89” x 7.48” 278 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.15” x 6.89” x 6.89” 207 x 175 x 190 mm |
| HYUNDAI i30 Station Wagon (GD) 1.6 CRDi | since 01.2015 |
8.15” x 6.89” x 7.48” 278 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 278 x 175 x 190 mm |
8.15” x 6.89” x 6.89” 277 x 174 x 190 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI i30 Station Wagon (GD) 1.4 | 06.2012 - 12.2015 | 570 | 470 | 360 |
| HYUNDAI i30 Station Wagon (GD) 1.6 | since 06.2012 | 760 | 480 | 360 |
| HYUNDAI i30 Station Wagon (GD) 1.6 GDI | since 06.2012 | 760 | 480 | 360 |
| HYUNDAI i30 Station Wagon (GD) 1.4 CRDi | since 06.2012 | 760 | 580 | 390 |
| HYUNDAI i30 Station Wagon (GD) 1.6 CRDi | 06.2012 - 12.2015 | 760 | 630 | 390 |
| HYUNDAI i30 Station Wagon (GD) 1.6 CRDi | since 06.2012 | 760 | 650 | 390 |
| HYUNDAI i30 Station Wagon (GD) 1.6 | 06.2012 - 12.2015 | 760 | 480 | 360 |
| HYUNDAI i30 Station Wagon (GD) 1.4 | since 01.2015 | 760 | 540 | 400 |
| HYUNDAI i30 Station Wagon (GD) 1.6 CRDi | since 01.2015 | 760 | 760 | 640 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI i30 Station Wagon (GD) 1.4 | 06.2012 - 12.2015 | 55 | 52 | 44 |
| HYUNDAI i30 Station Wagon (GD) 1.6 | since 06.2012 | 70 | 52 | 44 |
| HYUNDAI i30 Station Wagon (GD) 1.6 GDI | since 06.2012 | 70 | 52 | 44 |
| HYUNDAI i30 Station Wagon (GD) 1.4 CRDi | since 06.2012 | 78 | 65 | 60 |
| HYUNDAI i30 Station Wagon (GD) 1.6 CRDi | 06.2012 - 12.2015 | 78 | 70 | 60 |
| HYUNDAI i30 Station Wagon (GD) 1.6 CRDi | since 06.2012 | 78 | 70 | 60 |
| HYUNDAI i30 Station Wagon (GD) 1.6 | 06.2012 - 12.2015 | 70 | 53 | 45 |
| HYUNDAI i30 Station Wagon (GD) 1.4 | since 01.2015 | 70 | 53 | 45 |
| HYUNDAI i30 Station Wagon (GD) 1.6 CRDi | since 01.2015 | 72 | 70 | 70 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: OPEN PARTS Battery Code: BT055L1.30 Battery Capacity: 55 AH Voltage: 12 V Cold Cranking Amps (CCA): 570 A Length: 207 Width: 175 Height: 190 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: VARTA Battery Code: 5524000473132 Voltage: 12 V Battery Capacity: 52 AH Cold Cranking Amps (CCA): 470 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 207 Width: 175 Height: 190 |  |

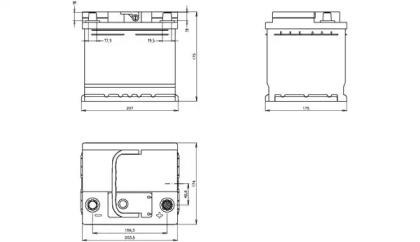

Battery Brand: OPEN PARTS Battery Code: BT044L1B.00 Battery Capacity: 44 AH Voltage: 12 V Cold Cranking Amps (CCA): 360 A Length: 207 Width: 175 Height: 175 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: VMF Battery Code: AGM570760 Voltage: 12 V Battery Capacity: 70 AH Height: 190 Width: 174 Length: 277 Cold Cranking Amps (CCA): 760 A Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 5544000533162 Voltage: 12 V Battery Capacity: 54 AH Cold Cranking Amps (CCA): 530 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 207 Width: 175 Height: 190 |  |
Battery Brand: VARTA Battery Code: 570901076D852 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 760 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 278 Width: 175 Height: 190 |  |

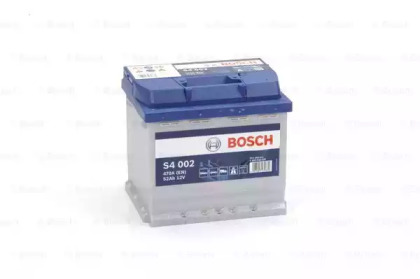

Battery Brand: BOSCH Battery Code: 0 092 S40 020 Voltage: 12 V Battery Capacity: 52 AH Cold Cranking Amps (CCA): 470 A Length: 207 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |

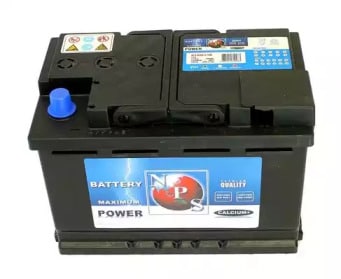

Battery Brand: NPS Battery Code: U540L51B Length: 277 Width: 174 Height: 190 Voltage: 12 V Cold Cranking Amps (CCA): 760 A Specification: AGM Battery Capacity: 70 AH |  |
Battery Brand: DETA Battery Code: DA654 Voltage: 12 V Battery Capacity: 65 AH Height: 222 Width: 173 Length: 230 Cold Cranking Amps (CCA): 580 A Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: TUDOR Battery Code: TB604 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: NPS Battery Code: U540L40B Length: 277 Width: 174 Height: 190 Voltage: 12 V Battery Capacity: 72 AH Cold Cranking Amps (CCA) DIN: 380 A Cold Cranking Amps (CCA): 640 A |  |
Battery Brand: EXIDE Battery Code: EB604 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: PLATINUM Battery Code: AGM096E Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 760 A Cold Cranking Amps (CCA) DIN: 57001 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Terminal Type: T1 Hold-down Type: B13 Vehicle Equipment: For vehicles with a start-stop system |  |

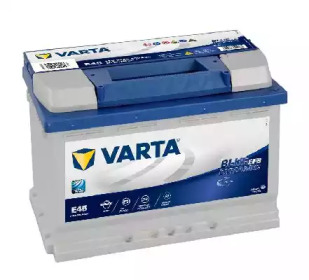

Battery Brand: VARTA Battery Code: 570500065D842 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 650 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 278 Width: 175 Height: 190 |  |
Battery Brand: DETA Battery Code: DB604 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: EXIDE Battery Code: EA530 Voltage: 12 V Battery Capacity: 53 AH Cold Cranking Amps (CCA): 540 A Length: 207 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |

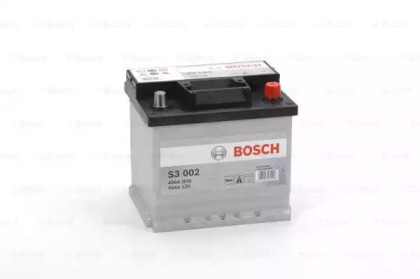

Battery Brand: BOSCH Battery Code: 0 092 S30 020 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 400 A Length: 207 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: TUDOR Battery Code: TK700 Voltage: 12 V Battery Capacity: 70 AH Height: 190 Width: 175 Length: 278 Cold Cranking Amps (CCA): 760 A Post Positions: 0 Hold-down Type: B13 |  |
