Battery for HYUNDAI ix20 (JC)
Compatible Car Batteries for HYUNDAI ix20 (JC)
Model years: since 11.2010. Car body type: Hatchback
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI ix20 (JC) 1.4 | since 11.2010 |
20.2” x 8.9” x 8.78” 513 x 226 x 223 mm |
20.16” x 8.78” x 8.66” 512 x 223 x 220 mm |
8.15” x 6.89” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI ix20 (JC) 1.6 | since 11.2010 |
20.2” x 8.9” x 8.78” 278 x 175 x 190 mm |
20.16” x 8.78” x 8.66” 207 x 175 x 190 mm |
8.15” x 6.89” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI ix20 (JC) 1.4 CRDi | since 11.2010 |
20.2” x 8.9” x 8.78” 269 x 174 x 225 mm |
20.16” x 8.78” x 8.66” 278 x 175 x 190 mm |
8.15” x 6.89” x 6.89” 200 x 172 x 223 mm |
| HYUNDAI ix20 (JC) 1.6 CRDI | since 06.2011 |
20.2” x 8.9” x 8.78” 518 x 291 x 242 mm |
20.16” x 8.78” x 8.66” 278 x 175 x 190 mm |
8.15” x 6.89” x 6.89” 200 x 172 x 223 mm |
| HYUNDAI ix20 (JC) 1.4 CRDi | since 06.2011 |
20.2” x 8.9” x 8.78” 518 x 291 x 242 mm |
20.16” x 8.78” x 8.66” 518 x 273 x 240 mm |
8.15” x 6.89” x 6.89” 242 x 175 x 190 mm |
| HYUNDAI ix20 (JC) 1.2 | since 11.2010 |
20.2” x 8.9” x 8.78” 413 x 175 x 220 mm |
20.16” x 8.78” x 8.66” 413 x 175 x 220 mm |
8.15” x 6.89” x 6.89” 413 x 175 x 220 mm |
| HYUNDAI ix20 (JC) 1.4 | since 11.2010 |
20.2” x 8.9” x 8.78” 513 x 223 x 223 mm |
20.16” x 8.78” x 8.66” 510 x 218 x 225 mm |
8.15” x 6.89” x 6.89” 510 x 218 x 225 mm |
| HYUNDAI ix20 (JC) 1.6 CRDI | since 06.2011 |
20.2” x 8.9” x 8.78” 278 x 175 x 190 mm |
20.16” x 8.78” x 8.66” 232 x 175 x 225 mm |
8.15” x 6.89” x 6.89” 242 x 175 x 190 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI ix20 (JC) 1.4 | since 11.2010 | 1150 | 815 | 360 |
| HYUNDAI ix20 (JC) 1.6 | since 11.2010 | 760 | 500 | 360 |
| HYUNDAI ix20 (JC) 1.4 CRDi | since 11.2010 | 760 | 760 | 420 |
| HYUNDAI ix20 (JC) 1.6 CRDI | since 06.2011 | 1450 | 760 | 390 |
| HYUNDAI ix20 (JC) 1.4 CRDi | since 06.2011 | 1450 | 1100 | 580 |
| HYUNDAI ix20 (JC) 1.2 | since 11.2010 | 680 | 680 | 680 |
| HYUNDAI ix20 (JC) 1.4 | since 11.2010 | 1050 | 1000 | 1000 |
| HYUNDAI ix20 (JC) 1.6 CRDI | since 06.2011 | 760 | 580 | 390 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI ix20 (JC) 1.4 | since 11.2010 | 200 | 155 | 44 |
| HYUNDAI ix20 (JC) 1.6 | since 11.2010 | 70 | 53 | 44 |
| HYUNDAI ix20 (JC) 1.4 CRDi | since 11.2010 | 72 | 70 | 45 |
| HYUNDAI ix20 (JC) 1.6 CRDI | since 06.2011 | 240 | 70 | 45 |
| HYUNDAI ix20 (JC) 1.4 CRDi | since 06.2011 | 240 | 215 | 60 |
| HYUNDAI ix20 (JC) 1.2 | since 11.2010 | 100 | 100 | 100 |
| HYUNDAI ix20 (JC) 1.4 | since 11.2010 | 180 | 180 | 180 |
| HYUNDAI ix20 (JC) 1.6 CRDI | since 06.2011 | 78 | 65 | 60 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: TUDOR Battery Code: TF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: BOSCH Battery Code: 0 092 T30 770 Voltage: 12 V Battery Capacity: 155 AH Cold Cranking Amps (CCA): 900 A Length: 513 Width: 223 Height: 223 Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: EXIDE Battery Code: EB504 Voltage: 12 V Battery Capacity: 50 AH Cold Cranking Amps (CCA): 360 A Length: 200 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: PLATINUM Battery Code: AGM096E Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 760 A Cold Cranking Amps (CCA) DIN: 57001 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Terminal Type: T1 Hold-down Type: B13 Vehicle Equipment: For vehicles with a start-stop system |  |
Battery Brand: OPEN PARTS Battery Code: BT050L1.00 Battery Capacity: 50 AH Voltage: 12 V Cold Cranking Amps (CCA): 500 A Length: 207 Width: 175 Height: 190 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: OPEN PARTS Battery Code: BT044L1B.00 Battery Capacity: 44 AH Voltage: 12 V Cold Cranking Amps (CCA): 360 A Length: 207 Width: 175 Height: 175 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: COMLINE Battery Code: CB096AGM Hold-down Type: B13 Voltage: 12 V Cold Cranking Amps (CCA): 760 A Battery Capacity: 70 AH Post Positions: 0 Filled Weight: 20.7 kg Length: 278 Width: 175 Height: 190 |  |
Battery Brand: PLATINUM Battery Code: 004LE Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 420 A Cold Cranking Amps (CCA) DIN: 54541 A Length: 200 Width: 172 Height: 223 Post Positions: 0 Terminal Type: T1 Hold-down Type: N |  |
Battery Brand: TUDOR Battery Code: TF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: BOSCH Battery Code: 0 092 S5A 080 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 760 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: DETA Battery Code: DB604 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: EXIDE Battery Code: EF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: BOSCH Battery Code: 0 092 T40 800 Voltage: 12 V Battery Capacity: 215 AH Cold Cranking Amps (CCA): 1150 A Length: 518 Width: 276 Height: 242 Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: OPEN PARTS Battery Code: BT060L2.00 Battery Capacity: 60 AH Voltage: 12 V Cold Cranking Amps (CCA): 600 A Length: 242 Width: 175 Height: 190 Hold-down Type: B13 Post Positions: DX |  |

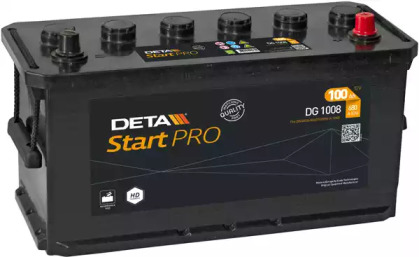

Battery Brand: DETA Battery Code: DG1008 Voltage: 12 V Battery Capacity: 100 AH Height: 220 Width: 175 Length: 413 Cold Cranking Amps (CCA): 680 A Post Positions: 3 Hold-down Type: B03 |  |

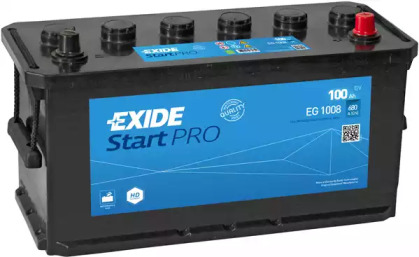

Battery Brand: EXIDE Battery Code: EG1008 Voltage: 12 V Battery Capacity: 100 AH Height: 220 Width: 175 Length: 413 Cold Cranking Amps (CCA): 680 A Post Positions: 3 Hold-down Type: B03 |  |

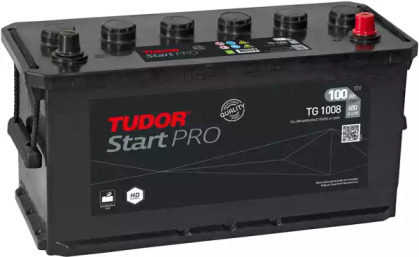

Battery Brand: TUDOR Battery Code: TG1008 Voltage: 12 V Battery Capacity: 100 AH Height: 220 Width: 175 Length: 413 Cold Cranking Amps (CCA): 680 A Post Positions: 0 Hold-down Type: B03 |  |

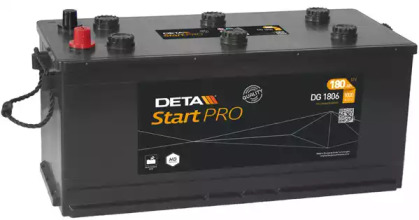

Battery Brand: DETA Battery Code: DG1806 Voltage: 12 V Battery Capacity: 180 AH Height: 225 Width: 218 Length: 510 Cold Cranking Amps (CCA): 1000 A Post Positions: 0 Hold-down Type: B3 |  |

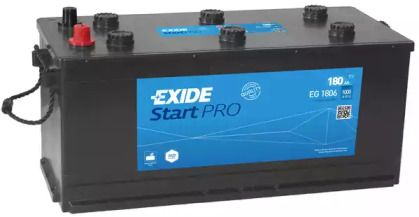

Battery Brand: EXIDE Battery Code: EG1806 Voltage: 12 V Battery Capacity: 180 AH Height: 225 Width: 218 Length: 510 Cold Cranking Amps (CCA): 1000 A Post Positions: 4 Hold-down Type: B03 |  |
Battery Brand: TUDOR Battery Code: TG1806 Voltage: 12 V Battery Capacity: 180 AH Height: 225 Width: 218 Length: 510 Cold Cranking Amps (CCA): 1000 A Post Positions: 4 Hold-down Type: B03 |  |
Battery Brand: EXIDE Battery Code: EK700 Cold Cranking Amps (CCA): 760 A Voltage: 12 V Battery Capacity: 70 AH Height: 190 Width: 175 Length: 278 Post Positions: 0 Hold-down Type: B13 |  |
