Battery for HYUNDAI ix35 (LM, EL, ELH)
Compatible Car Batteries for HYUNDAI ix35 (LM, EL, ELH)
Model years: since 08.2009. Car body type: Closed Off-Road Vehicle
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI ix35 (LM, EL, ELH) 2.0 CRDi | since 01.2012 |
20.39” x 10.98” x 9.45” 518 x 279 x 240 mm |
20.2” x 8.78” x 8.78” 513 x 223 x 223 mm |
10.91” x 6.85” x 7.48” 277 x 174 x 190 mm |
| HYUNDAI ix35 (LM, EL, ELH) 1.6 | since 11.2010 |
20.39” x 10.98” x 9.45” 518 x 276 x 242 mm |
20.2” x 8.78” x 8.78” 513 x 223 x 223 mm |
10.91” x 6.85” x 7.48” 242 x 174 x 190 mm |
| HYUNDAI ix35 (LM, EL, ELH) 1.7 CRDi | since 11.2010 |
20.39” x 10.98” x 9.45” 518 x 276 x 242 mm |
20.2” x 8.78” x 8.78” 315 x 175 x 190 mm |
10.91” x 6.85” x 7.48” 257 x 172 x 200 mm |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 | since 01.2010 |
20.39” x 10.98” x 9.45” 269 x 174 x 225 mm |
20.2” x 8.78” x 8.78” 232 x 173 x 225 mm |
10.91” x 6.85” x 7.48” 230 x 172 x 200 mm |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 4WD | since 01.2010 |
20.39” x 10.98” x 9.45” 303 x 175 x 227 mm |
20.2” x 8.78” x 8.78” 230 x 173 x 222 mm |
10.91” x 6.85” x 7.48” 230 x 172 x 200 mm |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 CRDi | since 01.2010 |
20.39” x 10.98” x 9.45” 303 x 175 x 227 mm |
20.2” x 8.78” x 8.78” 278 x 175 x 190 mm |
10.91” x 6.85” x 7.48” 278 x 175 x 175 mm |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 CRDi 4WD | since 01.2010 |
20.39” x 10.98” x 9.45” 303 x 175 x 227 mm |
20.2” x 8.78” x 8.78” 278 x 175 x 190 mm |
10.91” x 6.85” x 7.48” 278 x 175 x 175 mm |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 CRDi 4WD | since 01.2010 |
20.39” x 10.98” x 9.45” 303 x 175 x 227 mm |
20.2” x 8.78” x 8.78” 315 x 175 x 190 mm |
10.91” x 6.85” x 7.48” 278 x 175 x 175 mm |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 GDi 4WD | since 08.2013 |
20.39” x 10.98” x 9.45” 271 x 175 x 220 mm |
20.2” x 8.78” x 8.78” 230 x 173 x 222 mm |
10.91” x 6.85” x 7.48” 230 x 170 x 224 mm |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 GDi | since 08.2013 |
20.39” x 10.98” x 9.45” 271 x 175 x 220 mm |
20.2” x 8.78” x 8.78” 230 x 173 x 222 mm |
10.91” x 6.85” x 7.48” 230 x 170 x 224 mm |
| HYUNDAI ix35 (LM, EL, ELH) 2.4 DCVVT-I 4WD | 07.2010 - 12.2013 |
20.39” x 10.98” x 9.45” 230 x 173 x 222 mm |
20.2” x 8.78” x 8.78” 230 x 173 x 222 mm |
10.91” x 6.85” x 7.48” 242 x 175 x 190 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI ix35 (LM, EL, ELH) 2.0 CRDi | since 01.2012 | 1450 | 900 | 640 |
| HYUNDAI ix35 (LM, EL, ELH) 1.6 | since 11.2010 | 1300 | 815 | 550 |
| HYUNDAI ix35 (LM, EL, ELH) 1.7 CRDi | since 11.2010 | 1300 | 800 | 510 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 | since 01.2010 | 760 | 550 | 390 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 4WD | since 01.2010 | 850 | 550 | 390 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 CRDi | since 01.2010 | 850 | 760 | 600 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 CRDi 4WD | since 01.2010 | 850 | 760 | 600 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 CRDi 4WD | since 01.2010 | 850 | 760 | 600 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 GDi 4WD | since 08.2013 | 630 | 550 | 390 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 GDi | since 08.2013 | 630 | 550 | 390 |
| HYUNDAI ix35 (LM, EL, ELH) 2.4 DCVVT-I 4WD | 07.2010 - 12.2013 | 610 | 540 | 390 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI ix35 (LM, EL, ELH) 2.0 CRDi | since 01.2012 | 235 | 155 | 70 |
| HYUNDAI ix35 (LM, EL, ELH) 1.6 | since 11.2010 | 225 | 155 | 60 |
| HYUNDAI ix35 (LM, EL, ELH) 1.7 CRDi | since 11.2010 | 225 | 80 | 68 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 | since 01.2010 | 74 | 65 | 60 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 4WD | since 01.2010 | 100 | 65 | 60 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 CRDi | since 01.2010 | 100 | 75 | 70 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 CRDi 4WD | since 01.2010 | 100 | 77 | 70 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 CRDi 4WD | since 01.2010 | 100 | 90 | 70 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 GDi 4WD | since 08.2013 | 70 | 65 | 60 |
| HYUNDAI ix35 (LM, EL, ELH) 2.0 GDi | since 08.2013 | 70 | 65 | 60 |
| HYUNDAI ix35 (LM, EL, ELH) 2.4 DCVVT-I 4WD | 07.2010 - 12.2013 | 65 | 60 | 60 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: TUDOR Battery Code: TF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: BOSCH Battery Code: 0 092 T30 770 Voltage: 12 V Battery Capacity: 155 AH Cold Cranking Amps (CCA): 900 A Length: 513 Width: 223 Height: 223 Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L49B Length: 302 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA) DIN: 395 A Cold Cranking Amps (CCA): 640 A |  |
Battery Brand: EXIDE Battery Code: EF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: VMF Battery Code: 64317 Voltage: 12 V Battery Capacity: 155 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 900 A Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: VMF Battery Code: 57029 Voltage: 12 V Battery Capacity: 70 AH Height: 220 Width: 175 Length: 261 Cold Cranking Amps (CCA): 550 A Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |

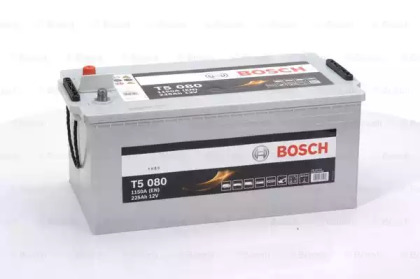

Battery Brand: BOSCH Battery Code: 0 092 T50 800 Voltage: 12 V Battery Capacity: 225 AH Cold Cranking Amps (CCA): 1150 A Length: 518 Width: 276 Height: 242 Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: EXIDE Battery Code: EK800 Voltage: 12 V Battery Capacity: 80 AH Height: 190 Width: 175 Length: 315 Cold Cranking Amps (CCA): 800 A Post Positions: 0 Hold-down Type: B13 |  |
Battery Brand: NPS Battery Code: U540L66B Length: 257 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA) DIN: 310 A Cold Cranking Amps (CCA): 510 A |  |

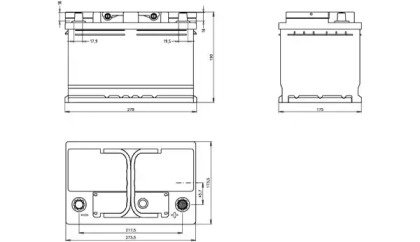

Battery Brand: OPEN PARTS Battery Code: BT074L3.00 Battery Capacity: 74 AH Voltage: 12 V Cold Cranking Amps (CCA): 720 A Length: 278 Width: 175 Height: 190 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: VARTA Battery Code: 5604100543132 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B00 Length: 232 Width: 173 Height: 225 |  |
Battery Brand: TUDOR Battery Code: TB604 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 290 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Length: 306 Width: 173 Height: 225 Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 5954050833132 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B01 Length: 306 Width: 173 Height: 225 |  |
Battery Brand: VMF Battery Code: 60033 Voltage: 12 V Battery Capacity: 100 AH Height: 220 Width: 173 Length: 303 Cold Cranking Amps (CCA): 740 A Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: OPEN PARTS Battery Code: BT073L3B.00 Battery Capacity: 73 AH Voltage: 12 V Cold Cranking Amps (CCA): 600 A Length: 278 Width: 175 Height: 175 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: PLATINUM Battery Code: 249E Voltage: 12 V Battery Capacity: 90 AH Cold Cranking Amps (CCA): 740 A Cold Cranking Amps (CCA) DIN: 59004 A Length: 304 Width: 174 Height: 225 Post Positions: 0 Terminal Type: T1 Hold-down Type: B01 |  |
Battery Brand: VMF Battery Code: AGM570760 Voltage: 12 V Battery Capacity: 70 AH Height: 190 Width: 174 Length: 277 Cold Cranking Amps (CCA): 760 A Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 5704120633132 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 630 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B01 Length: 261 Width: 175 Height: 220 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 240 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Length: 232 Width: 173 Height: 225 Post Positions: 0 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: DETA Battery Code: DB604 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: BOSCH Battery Code: 0 092 S50 050 Voltage: 12 V Battery Capacity: 63 AH Cold Cranking Amps (CCA): 610 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 050 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
