Battery for HYUNDAI SONATA II (Generation 2) (Y-2)
Compatible Car Batteries for HYUNDAI SONATA II (2) (Y-2)
Model years: 09.1988 - 10.1993. Car body type: Sedan
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI SONATA II (2) (Y-2) 2.0 i | 01.1991 - 10.1993 |
10.67” x 6.89” x 8.66” 271 x 175 x 220 mm |
10.28” x 6.81” x 8.07” 261 x 173 x 205 mm |
9.06” x 6.77” x 7.87” 230 x 172 x 200 mm |
| HYUNDAI SONATA II (2) (Y-2) 2.0 i 16V | 01.1991 - 10.1993 |
10.67” x 6.89” x 8.66” 271 x 175 x 220 mm |
10.28” x 6.81” x 8.07” 261 x 173 x 205 mm |
9.06” x 6.77” x 7.87” 230 x 172 x 200 mm |
| HYUNDAI SONATA II (2) (Y-2) 3.0 i V6 | 01.1991 - 10.1993 |
10.67” x 6.89” x 8.66” 271 x 175 x 220 mm |
10.28” x 6.81” x 8.07” 260 x 170 x 220 mm |
9.06” x 6.77” x 7.87” 230 x 172 x 200 mm |
| HYUNDAI SONATA II (2) (Y-2) 1.8 i | 09.1988 - 10.1993 |
10.67” x 6.89” x 8.66” 413 x 175 x 220 mm |
10.28” x 6.81” x 8.07” 261 x 175 x 220 mm |
9.06” x 6.77” x 7.87” 230 x 172 x 200 mm |
| HYUNDAI SONATA II (2) (Y-2) 2.4 i | 09.1988 - 08.1991 |
10.67” x 6.89” x 8.66” 518 x 279 x 240 mm |
10.28” x 6.81” x 8.07” 261 x 175 x 220 mm |
9.06” x 6.77” x 7.87” 230 x 172 x 200 mm |
| HYUNDAI SONATA II (2) (Y-2) 2.0 i | 09.1988 - 08.1991 |
10.67” x 6.89” x 8.66” 518 x 279 x 240 mm |
10.28” x 6.81” x 8.07” 261 x 175 x 220 mm |
9.06” x 6.77” x 7.87” 230 x 172 x 200 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI SONATA II (2) (Y-2) 2.0 i | 01.1991 - 10.1993 | 700 | 550 | 390 |
| HYUNDAI SONATA II (2) (Y-2) 2.0 i 16V | 01.1991 - 10.1993 | 700 | 550 | 390 |
| HYUNDAI SONATA II (2) (Y-2) 3.0 i V6 | 01.1991 - 10.1993 | 700 | 550 | 390 |
| HYUNDAI SONATA II (2) (Y-2) 1.8 i | 09.1988 - 10.1993 | 700 | 550 | 390 |
| HYUNDAI SONATA II (2) (Y-2) 2.4 i | 09.1988 - 08.1991 | 1450 | 550 | 390 |
| HYUNDAI SONATA II (2) (Y-2) 2.0 i | 09.1988 - 08.1991 | 1200 | 550 | 390 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI SONATA II (2) (Y-2) 2.0 i | 01.1991 - 10.1993 | 70 | 62 | 60 |
| HYUNDAI SONATA II (2) (Y-2) 2.0 i 16V | 01.1991 - 10.1993 | 70 | 60 | 59 |
| HYUNDAI SONATA II (2) (Y-2) 3.0 i V6 | 01.1991 - 10.1993 | 70 | 68 | 60 |
| HYUNDAI SONATA II (2) (Y-2) 1.8 i | 09.1988 - 10.1993 | 100 | 68 | 59 |
| HYUNDAI SONATA II (2) (Y-2) 2.4 i | 09.1988 - 08.1991 | 235 | 70 | 60 |
| HYUNDAI SONATA II (2) (Y-2) 2.0 i | 09.1988 - 08.1991 | 215 | 68 | 60 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: BOSCH Battery Code: 0 092 S40 270 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 630 A Length: 271 Width: 175 Height: 220 Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: PLATINUM Battery Code: 005RE Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 510 A Cold Cranking Amps (CCA) DIN: 56069 A Length: 230 Width: 172 Height: 223 Post Positions: 1 Terminal Type: T1 Hold-down Type: N |  |
Battery Brand: DETA Battery Code: DB605 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: TUDOR Battery Code: TB605 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: NPS Battery Code: U540L19B Length: 230 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA) DIN: 300 A Cold Cranking Amps (CCA): 480 A |  |
Battery Brand: DETA Battery Code: DG1008 Voltage: 12 V Battery Capacity: 100 AH Height: 220 Width: 175 Length: 413 Cold Cranking Amps (CCA): 680 A Post Positions: 3 Hold-down Type: B03 |  |
Battery Brand: COMLINE Battery Code: CB031PL Hold-down Type: B0 Voltage: 12 V Cold Cranking Amps (CCA): 540 A Battery Capacity: 70 AH Post Positions: 1 Filled Weight: 15.6 kg Length: 260 Width: 170 Height: 220 |  |

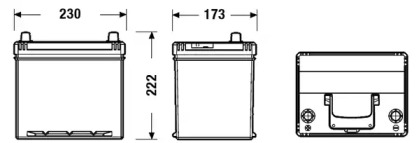

Battery Brand: EXIDE Battery Code: EB605 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: DETA Battery Code: DF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |

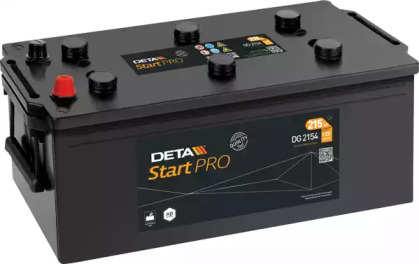

Battery Brand: DETA Battery Code: DG2154 Voltage: 12 V Battery Capacity: 210 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1200 A Post Positions: 4 Hold-down Type: B0 |  |
