Battery for HYUNDAI SONATA III (Generation 3) (Y-3)
Compatible Car Batteries for HYUNDAI SONATA III (3) (Y-3)
Model years: 05.1993 - 11.1998. Car body type: Sedan
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI SONATA III (3) (Y-3) 2.0 i | 06.1994 - 08.1996 |
9.57” x 6.89” x 7.48” 243 x 175 x 190 mm |
9.53” x 6.89” x 7.48” 242 x 175 x 190 mm |
9.53” x 6.89” x 6.89” 242 x 175 x 175 mm |
| HYUNDAI SONATA III (3) (Y-3) 2.0 i 16V | 05.1993 - 06.1998 |
9.57” x 6.89” x 7.48” 230 x 172 x 223 mm |
9.53” x 6.89” x 7.48” 242 x 175 x 190 mm |
9.53” x 6.89” x 6.89” 242 x 175 x 175 mm |
| HYUNDAI SONATA III (3) (Y-3) 3.0 i V6 | 05.1993 - 06.1998 |
9.57” x 6.89” x 7.48” 271 x 175 x 220 mm |
9.53” x 6.89” x 7.48” 230 x 172 x 223 mm |
9.53” x 6.89” x 6.89” 230 x 172 x 200 mm |
| HYUNDAI SONATA III (3) (Y-3) 2.0 i 16V | 06.1996 - 06.1998 |
9.57” x 6.89” x 7.48” 513 x 226 x 223 mm |
9.53” x 6.89” x 7.48” 513 x 223 x 223 mm |
9.53” x 6.89” x 6.89” 242 x 175 x 175 mm |
| HYUNDAI SONATA III (3) (Y-3) 1.8 i | 05.1993 - 06.1998 |
9.57” x 6.89” x 7.48” 413 x 175 x 220 mm |
9.53” x 6.89” x 7.48” 242 x 175 x 190 mm |
9.53” x 6.89” x 6.89” 230 x 172 x 200 mm |
| HYUNDAI SONATA III (3) (Y-3) 2.0 i | 08.1996 - 06.1998 |
9.57” x 6.89” x 7.48” 518 x 279 x 240 mm |
9.53” x 6.89” x 7.48” 243 x 175 x 190 mm |
9.53” x 6.89” x 6.89” 242 x 175 x 175 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI SONATA III (3) (Y-3) 2.0 i | 06.1994 - 08.1996 | 640 | 540 | 480 |
| HYUNDAI SONATA III (3) (Y-3) 2.0 i 16V | 05.1993 - 06.1998 | 640 | 540 | 480 |
| HYUNDAI SONATA III (3) (Y-3) 3.0 i V6 | 05.1993 - 06.1998 | 700 | 550 | 480 |
| HYUNDAI SONATA III (3) (Y-3) 2.0 i 16V | 06.1996 - 06.1998 | 1150 | 900 | 480 |
| HYUNDAI SONATA III (3) (Y-3) 1.8 i | 05.1993 - 06.1998 | 830 | 540 | 480 |
| HYUNDAI SONATA III (3) (Y-3) 2.0 i | 08.1996 - 06.1998 | 1450 | 620 | 480 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI SONATA III (3) (Y-3) 2.0 i | 06.1994 - 08.1996 | 66 | 60 | 55 |
| HYUNDAI SONATA III (3) (Y-3) 2.0 i 16V | 05.1993 - 06.1998 | 66 | 60 | 55 |
| HYUNDAI SONATA III (3) (Y-3) 3.0 i V6 | 05.1993 - 06.1998 | 70 | 62 | 60 |
| HYUNDAI SONATA III (3) (Y-3) 2.0 i 16V | 06.1996 - 06.1998 | 200 | 155 | 55 |
| HYUNDAI SONATA III (3) (Y-3) 1.8 i | 05.1993 - 06.1998 | 100 | 60 | 56 |
| HYUNDAI SONATA III (3) (Y-3) 2.0 i | 08.1996 - 06.1998 | 235 | 64 | 55 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|

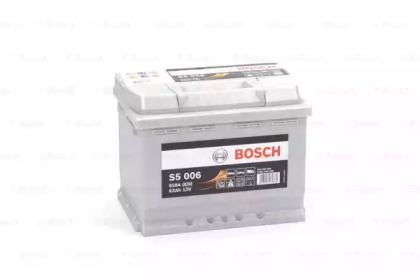

Battery Brand: BOSCH Battery Code: 0 092 S50 060 Voltage: 12 V Battery Capacity: 63 AH Cold Cranking Amps (CCA): 610 A Length: 242 Width: 175 Height: 190 Post Positions: 1 Hold-down Type: B13 Terminal Type: 1 |  |

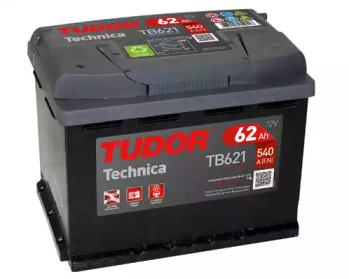

Battery Brand: TUDOR Battery Code: TB621 Voltage: 12 V Battery Capacity: 62 AH Cold Cranking Amps (CCA): 540 A Length: 242 Width: 175 Height: 190 Post Positions: 1 Terminal Type: EN Hold-down Type: B13 |  |

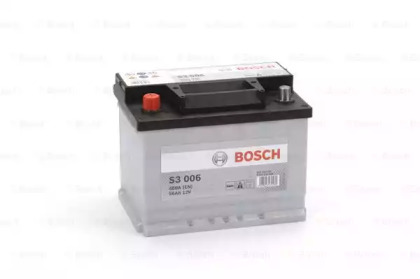

Battery Brand: BOSCH Battery Code: 0 092 S30 060 Voltage: 12 V Battery Capacity: 56 AH Cold Cranking Amps (CCA): 480 A Length: 242 Width: 175 Height: 190 Post Positions: 1 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 5634010613162 Voltage: 12 V Battery Capacity: 63 AH Cold Cranking Amps (CCA): 610 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B13 Length: 242 Width: 175 Height: 190 |  |

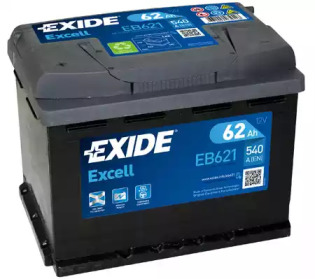

Battery Brand: EXIDE Battery Code: EB621 Voltage: 12 V Battery Capacity: 62 AH Cold Cranking Amps (CCA): 540 A Length: 242 Width: 175 Height: 190 Post Positions: 1 Terminal Type: EN Hold-down Type: B13 |  |

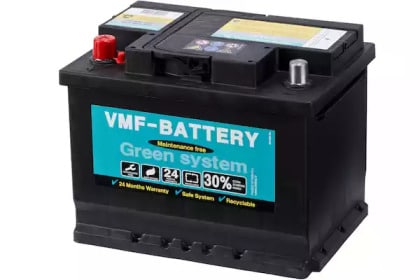

Battery Brand: VMF Battery Code: 55565 Voltage: 12 V Battery Capacity: 56 AH Height: 190 Width: 175 Length: 242 Cold Cranking Amps (CCA): 480 A Post Positions: 1 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 5704130633132 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 630 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B01 Length: 261 Width: 175 Height: 220 |  |

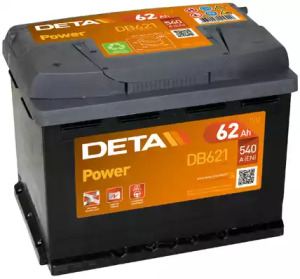

Battery Brand: DETA Battery Code: DB621 Voltage: 12 V Battery Capacity: 62 AH Cold Cranking Amps (CCA): 540 A Length: 242 Width: 175 Height: 190 Post Positions: 1 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: NPS Battery Code: U540L19B Length: 230 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA) DIN: 300 A Cold Cranking Amps (CCA): 480 A |  |
Battery Brand: DETA Battery Code: DF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 226 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B0 |  |
Battery Brand: BOSCH Battery Code: 0 092 T30 770 Voltage: 12 V Battery Capacity: 155 AH Cold Cranking Amps (CCA): 900 A Length: 513 Width: 223 Height: 223 Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |

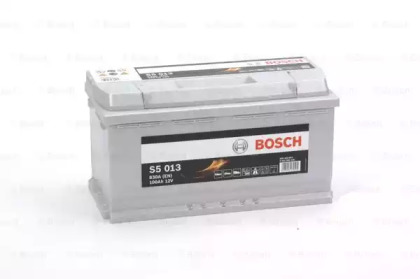

Battery Brand: BOSCH Battery Code: 0 092 S50 130 Voltage: 12 V Battery Capacity: 100 AH Cold Cranking Amps (CCA): 830 A Length: 353 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: DETA Battery Code: DF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: BOSCH Battery Code: 0 092 T40 770 Voltage: 12 V Battery Capacity: 170 AH Cold Cranking Amps (CCA): 1000 A Length: 513 Width: 223 Height: 223 Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
