Battery for HYUNDAI SONATA IV (Generation 4) (EF)
Compatible Car Batteries for HYUNDAI SONATA IV (4) (EF)
Model years: 03.1998 - 12.2005. Car body type: Sedan
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI SONATA IV (4) (EF) 2.7 i V6 | 10.2001 - 05.2005 |
13.9” x 6.89” x 7.48” 353 x 175 x 190 mm |
10.94” x 6.89” x 7.48” 278 x 175 x 190 mm |
9.53” x 6.89” x 6.89” 242 x 175 x 175 mm |
| HYUNDAI SONATA IV (4) (EF) 2.5 i V6 | 08.1998 - 09.2001 |
13.9” x 6.89” x 7.48” 514 x 175 x 210 mm |
10.94” x 6.89” x 7.48” 514 x 175 x 210 mm |
9.53” x 6.89” x 6.89” 353 x 175 x 190 mm |
| HYUNDAI SONATA IV (4) (EF) 2.5 V6 24V | 06.1998 - 10.2001 |
13.9” x 6.89” x 7.48” 518 x 279 x 240 mm |
10.94” x 6.89” x 7.48” 513 x 223 x 223 mm |
9.53” x 6.89” x 6.89” 242 x 175 x 175 mm |
| HYUNDAI SONATA IV (4) (EF) 2.0 16V | 06.1998 - 10.2001 |
13.9” x 6.89” x 7.48” 518 x 279 x 240 mm |
10.94” x 6.89” x 7.48” 512 x 223 x 220 mm |
9.53” x 6.89” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI SONATA IV (4) (EF) 2.4 16V | 03.1998 - 10.2001 |
13.9” x 6.89” x 7.48” 518 x 279 x 240 mm |
10.94” x 6.89” x 7.48” 278 x 175 x 190 mm |
9.53” x 6.89” x 6.89” 242 x 175 x 190 mm |
| HYUNDAI SONATA IV (4) (EF) 2.0 16V | 10.2001 - 11.2004 |
13.9” x 6.89” x 7.48” 513 x 223 x 223 mm |
10.94” x 6.89” x 7.48” 242 x 175 x 190 mm |
9.53” x 6.89” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI SONATA IV (4) (EF) 2.7 V6 | 10.2001 - 11.2004 |
13.9” x 6.89” x 7.48” 513 x 223 x 223 mm |
10.94” x 6.89” x 7.48” 242 x 175 x 190 mm |
9.53” x 6.89” x 6.89” 207 x 175 x 175 mm |
| HYUNDAI SONATA IV (4) (EF) 2.7 V6 | 11.2002 - 11.2004 |
13.9” x 6.89” x 7.48” 271 x 175 x 220 mm |
10.94” x 6.89” x 7.48” 242 x 175 x 190 mm |
9.53” x 6.89” x 6.89” 242 x 175 x 175 mm |
| HYUNDAI SONATA IV (4) (EF) 2.0 16V | 10.2001 - 11.2004 |
13.9” x 6.89” x 7.48” 518 x 279 x 240 mm |
10.94” x 6.89” x 7.48” 513 x 223 x 223 mm |
9.53” x 6.89” x 6.89” 513 x 223 x 223 mm |
| HYUNDAI SONATA IV (4) (EF) 2.0 CRDi Dynamic | 10.2001 - 11.2004 |
13.9” x 6.89” x 7.48” 518 x 279 x 240 mm |
10.94” x 6.89” x 7.48” 513 x 223 x 223 mm |
9.53” x 6.89” x 6.89” 513 x 223 x 223 mm |
| HYUNDAI SONATA IV (4) (EF) 2.2 CRDi | 06.2002 - 11.2004 |
13.9” x 6.89” x 7.48” 518 x 279 x 240 mm |
10.94” x 6.89” x 7.48” 513 x 223 x 223 mm |
9.53” x 6.89” x 6.89” 513 x 223 x 223 mm |
| HYUNDAI SONATA IV (4) (EF) 2.0 | 04.2001 - 11.2004 |
13.9” x 6.89” x 7.48” 230 x 172 x 223 mm |
10.94” x 6.89” x 7.48” 243 x 175 x 190 mm |
9.53” x 6.89” x 6.89” 243 x 175 x 190 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI SONATA IV (4) (EF) 2.7 i V6 | 10.2001 - 05.2005 | 900 | 680 | 480 |
| HYUNDAI SONATA IV (4) (EF) 2.5 i V6 | 08.1998 - 09.2001 | 910 | 760 | 760 |
| HYUNDAI SONATA IV (4) (EF) 2.5 V6 24V | 06.1998 - 10.2001 | 1450 | 900 | 480 |
| HYUNDAI SONATA IV (4) (EF) 2.0 16V | 06.1998 - 10.2001 | 1450 | 815 | 480 |
| HYUNDAI SONATA IV (4) (EF) 2.4 16V | 03.1998 - 10.2001 | 1450 | 780 | 540 |
| HYUNDAI SONATA IV (4) (EF) 2.0 16V | 10.2001 - 11.2004 | 1050 | 600 | 480 |
| HYUNDAI SONATA IV (4) (EF) 2.7 V6 | 10.2001 - 11.2004 | 1050 | 610 | 480 |
| HYUNDAI SONATA IV (4) (EF) 2.7 V6 | 11.2002 - 11.2004 | 680 | 540 | 480 |
| HYUNDAI SONATA IV (4) (EF) 2.0 16V | 10.2001 - 11.2004 | 1450 | 1150 | 1100 |
| HYUNDAI SONATA IV (4) (EF) 2.0 CRDi Dynamic | 10.2001 - 11.2004 | 1450 | 1150 | 1100 |
| HYUNDAI SONATA IV (4) (EF) 2.2 CRDi | 06.2002 - 11.2004 | 1450 | 1150 | 900 |
| HYUNDAI SONATA IV (4) (EF) 2.0 | 04.2001 - 11.2004 | 550 | 510 | 510 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI SONATA IV (4) (EF) 2.7 i V6 | 10.2001 - 05.2005 | 100 | 74 | 55 |
| HYUNDAI SONATA IV (4) (EF) 2.5 i V6 | 08.1998 - 09.2001 | 135 | 110 | 95 |
| HYUNDAI SONATA IV (4) (EF) 2.5 V6 24V | 06.1998 - 10.2001 | 235 | 155 | 56 |
| HYUNDAI SONATA IV (4) (EF) 2.0 16V | 06.1998 - 10.2001 | 235 | 155 | 54 |
| HYUNDAI SONATA IV (4) (EF) 2.4 16V | 03.1998 - 10.2001 | 235 | 77 | 60 |
| HYUNDAI SONATA IV (4) (EF) 2.0 16V | 10.2001 - 11.2004 | 190 | 62 | 54 |
| HYUNDAI SONATA IV (4) (EF) 2.7 V6 | 10.2001 - 11.2004 | 190 | 63 | 54 |
| HYUNDAI SONATA IV (4) (EF) 2.7 V6 | 11.2002 - 11.2004 | 70 | 62 | 55 |
| HYUNDAI SONATA IV (4) (EF) 2.0 16V | 10.2001 - 11.2004 | 235 | 185 | 185 |
| HYUNDAI SONATA IV (4) (EF) 2.0 CRDi Dynamic | 10.2001 - 11.2004 | 235 | 185 | 185 |
| HYUNDAI SONATA IV (4) (EF) 2.2 CRDi | 06.2002 - 11.2004 | 235 | 185 | 155 |
| HYUNDAI SONATA IV (4) (EF) 2.0 | 04.2001 - 11.2004 | 60 | 60 | 60 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: VMF Battery Code: 95751 Voltage: 12 V Battery Capacity: 90 AH Height: 190 Width: 175 Length: 353 Cold Cranking Amps (CCA): 800 A Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: BOSCH Battery Code: 0 092 S30 080 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 640 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L50B Length: 242 Width: 172 Height: 190 Voltage: 12 V Battery Capacity: 62 AH Cold Cranking Amps (CCA) DIN: 300 A Cold Cranking Amps (CCA): 480 A |  |

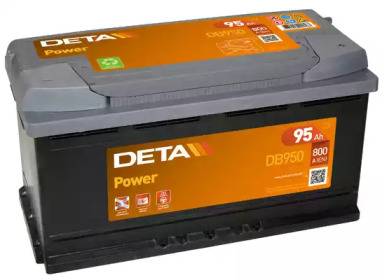

Battery Brand: DETA Battery Code: DB950 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 800 A Length: 353 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |

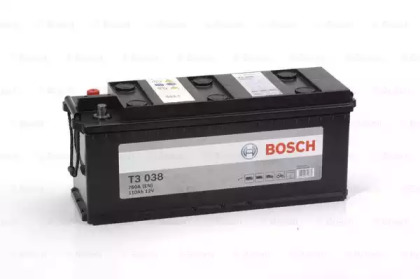

Battery Brand: BOSCH Battery Code: 0 092 T30 380 Voltage: 12 V Battery Capacity: 110 AH Cold Cranking Amps (CCA): 760 A Length: 514 Width: 175 Height: 210 Post Positions: 3 Hold-down Type: B03 Terminal Type: 1 |  |

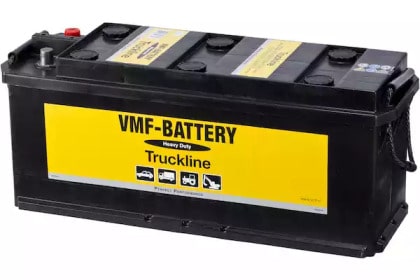

Battery Brand: VMF Battery Code: 61023 Voltage: 12 V Battery Capacity: 110 AH Height: 210 Width: 175 Length: 514 Cold Cranking Amps (CCA): 760 A Post Positions: 3 Hold-down Type: B03 Terminal Type: 1 |  |
Battery Brand: TUDOR Battery Code: TF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: BOSCH Battery Code: 0 092 S50 080 Voltage: 12 V Battery Capacity: 77 AH Cold Cranking Amps (CCA): 780 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: VMF Battery Code: 55565 Voltage: 12 V Battery Capacity: 56 AH Height: 190 Width: 175 Length: 242 Cold Cranking Amps (CCA): 480 A Post Positions: 1 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: EXIDE Battery Code: EF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: BOSCH Battery Code: 0 092 T30 770 Voltage: 12 V Battery Capacity: 155 AH Cold Cranking Amps (CCA): 900 A Length: 513 Width: 223 Height: 223 Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: BOSCH Battery Code: 0 092 S30 050 Voltage: 12 V Battery Capacity: 56 AH Cold Cranking Amps (CCA): 480 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |

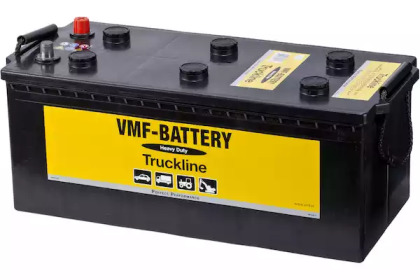

Battery Brand: VMF Battery Code: 64317 Voltage: 12 V Battery Capacity: 155 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 900 A Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: DETA Battery Code: DB621 Voltage: 12 V Battery Capacity: 62 AH Cold Cranking Amps (CCA): 540 A Length: 242 Width: 175 Height: 190 Post Positions: 1 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: VARTA Battery Code: 690500105E652 Voltage: 12 V Battery Capacity: 190 AH Cold Cranking Amps (CCA): 1050 A Post Positions: 3 Terminal Type: 1 Hold-down Type: B00 Length: 513 Width: 223 Height: 223 |  |
Battery Brand: OPEN PARTS Battery Code: BT060L2.00 Battery Capacity: 60 AH Voltage: 12 V Cold Cranking Amps (CCA): 600 A Length: 242 Width: 175 Height: 190 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: VARTA Battery Code: 5634010613162 Voltage: 12 V Battery Capacity: 63 AH Cold Cranking Amps (CCA): 610 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B13 Length: 242 Width: 175 Height: 190 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 260 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 630 A Length: 271 Width: 175 Height: 220 Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 050 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: DETA Battery Code: DF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: DETA Battery Code: DF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 226 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B0 |  |
Battery Brand: TUDOR Battery Code: TF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: EXIDE Battery Code: EF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: PLATINUM Battery Code: 005RE Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 510 A Cold Cranking Amps (CCA) DIN: 56069 A Length: 230 Width: 172 Height: 223 Post Positions: 1 Terminal Type: T1 Hold-down Type: N |  |
