Battery for HYUNDAI TERRACAN (HP)
Compatible Car Batteries for HYUNDAI TERRACAN (HP)
Model years: 06.2001 - 03.2008. Car body type: Closed Off-Road Vehicle
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI TERRACAN (HP) 2.5 TD | 12.2001 - 12.2006 |
20.39” x 10.87” x 9.53” 518 x 276 x 242 mm |
20.2” x 7.44” x 8.78” 513 x 189 x 223 mm |
11.89” x 6.77” x 7.87” 302 x 172 x 200 mm |
| HYUNDAI TERRACAN (HP) 3.5 i V6 4WD | 12.2001 - 12.2006 |
20.39” x 10.87” x 9.53” 518 x 279 x 240 mm |
20.2” x 7.44” x 8.78” 513 x 226 x 223 mm |
11.89” x 6.77” x 7.87” 513 x 223 x 223 mm |
| HYUNDAI TERRACAN (HP) 2.9 CRDi 4WD | 12.2001 - 12.2006 |
20.39” x 10.87” x 9.53” 518 x 291 x 242 mm |
20.2” x 7.44” x 8.78” 513 x 223 x 223 mm |
11.89” x 6.77” x 7.87” 315 x 175 x 205 mm |
| HYUNDAI TERRACAN (HP) 2.9 CRDi 4WD | 11.2003 - 12.2006 |
20.39” x 10.87” x 9.53” 303 x 175 x 227 mm |
20.2” x 7.44” x 8.78” 306 x 173 x 222 mm |
11.89” x 6.77” x 7.87” 315 x 175 x 205 mm |
| HYUNDAI TERRACAN (HP) 3.5 i V6 4WD | 12.2001 - 12.2006 |
20.39” x 10.87” x 9.53” 303 x 175 x 227 mm |
20.2” x 7.44” x 8.78” 306 x 173 x 222 mm |
11.89” x 6.77” x 7.87” 302 x 172 x 200 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI TERRACAN (HP) 2.5 TD | 12.2001 - 12.2006 | 1200 | 850 | 640 |
| HYUNDAI TERRACAN (HP) 3.5 i V6 4WD | 12.2001 - 12.2006 | 1450 | 1150 | 1000 |
| HYUNDAI TERRACAN (HP) 2.9 CRDi 4WD | 12.2001 - 12.2006 | 1450 | 1000 | 700 |
| HYUNDAI TERRACAN (HP) 2.9 CRDi 4WD | 11.2003 - 12.2006 | 850 | 800 | 720 |
| HYUNDAI TERRACAN (HP) 3.5 i V6 4WD | 12.2001 - 12.2006 | 850 | 800 | 640 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI TERRACAN (HP) 2.5 TD | 12.2001 - 12.2006 | 240 | 140 | 90 |
| HYUNDAI TERRACAN (HP) 3.5 i V6 4WD | 12.2001 - 12.2006 | 240 | 185 | 180 |
| HYUNDAI TERRACAN (HP) 2.9 CRDi 4WD | 12.2001 - 12.2006 | 235 | 170 | 90 |
| HYUNDAI TERRACAN (HP) 2.9 CRDi 4WD | 11.2003 - 12.2006 | 105 | 95 | 90 |
| HYUNDAI TERRACAN (HP) 3.5 i V6 4WD | 12.2001 - 12.2006 | 105 | 95 | 90 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: VARTA Battery Code: 740500120E652 Voltage: 12 V Battery Capacity: 240 AH Cold Cranking Amps (CCA): 1200 A Post Positions: 3 Terminal Type: 1 Hold-down Type: B00 Length: 518 Width: 276 Height: 242 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 280 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Length: 306 Width: 173 Height: 225 Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L49B Length: 302 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA) DIN: 395 A Cold Cranking Amps (CCA): 640 A |  |
Battery Brand: TUDOR Battery Code: TF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: TUDOR Battery Code: TF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: VMF Battery Code: 96351 Voltage: 12 V Battery Capacity: 180 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 1000 A Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: DETA Battery Code: DF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: BOSCH Battery Code: 0 092 T50 770 Voltage: 12 V Battery Capacity: 180 AH Cold Cranking Amps (CCA): 1000 A Length: 513 Width: 223 Height: 223 Post Positions: 3 Hold-down Type: B00 Terminal Type: 1 |  |

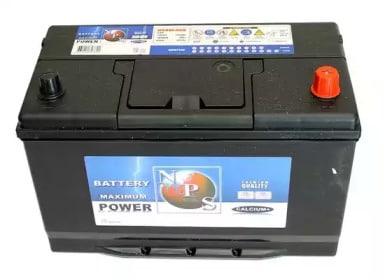

Battery Brand: NPS Battery Code: U540L44B Length: 325 Width: 172 Height: 205 Voltage: 12 V Battery Capacity: 100 AH Cold Cranking Amps (CCA) DIN: 440 A Cold Cranking Amps (CCA): 720 A |  |
Battery Brand: PLATINUM Battery Code: 249E Voltage: 12 V Battery Capacity: 90 AH Cold Cranking Amps (CCA): 740 A Cold Cranking Amps (CCA) DIN: 59004 A Length: 304 Width: 174 Height: 225 Post Positions: 0 Terminal Type: T1 Hold-down Type: B01 |  |
Battery Brand: VMF Battery Code: 60032 Voltage: 12 V Battery Capacity: 100 AH Height: 220 Width: 173 Length: 303 Cold Cranking Amps (CCA): 740 A Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |
