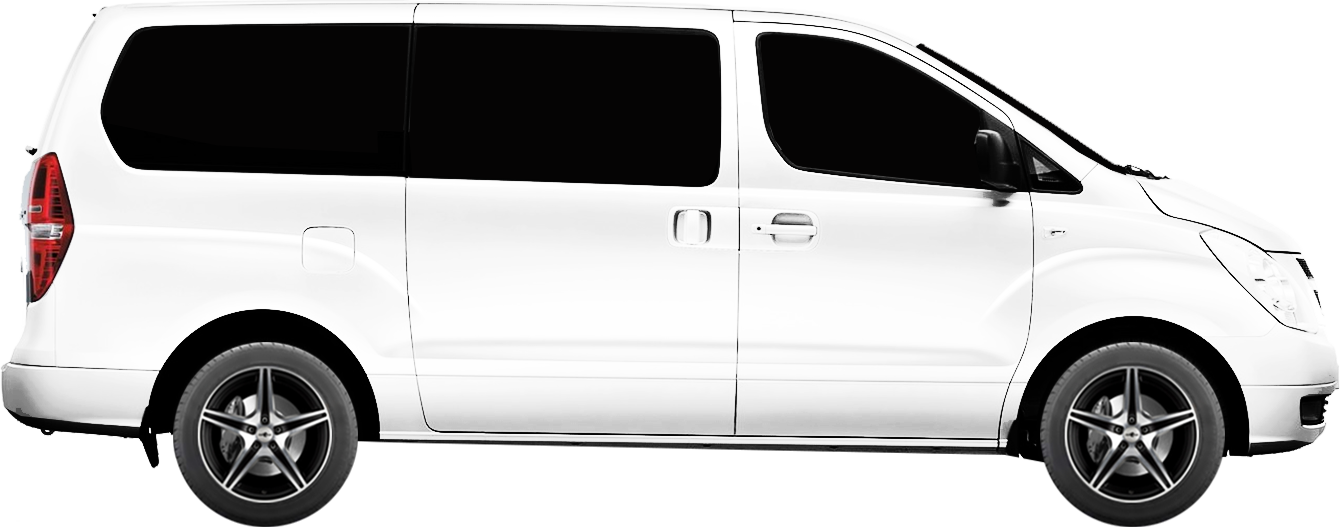

Battery for HYUNDAI H-1 Cargo (TQ)
Compatible Car Batteries for HYUNDAI H-1 Cargo (TQ)
Model years: since 02.2008. Car body type: Box
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 02.2008 |
12.99” x 6.77” x 9.45” 330 x 172 x 240 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.91” x 6.85” x 7.48” 277 x 174 x 190 mm |
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 02.2008 |
12.99” x 6.77” x 9.45” 330 x 172 x 240 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.91” x 6.85” x 7.48” 277 x 174 x 190 mm |
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 02.2008 |
12.99” x 6.77” x 9.45” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.91” x 6.85” x 7.48” 277 x 174 x 190 mm |
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 08.2011 |
12.99” x 6.77” x 9.45” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.91” x 6.85” x 7.48” 302 x 172 x 200 mm |
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 08.2009 |
12.99” x 6.77” x 9.45” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.91” x 6.85” x 7.48” 277 x 174 x 190 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 02.2008 | 850 | 740 | 610 |
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 02.2008 | 850 | 800 | 610 |
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 02.2008 | 850 | 740 | 610 |
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 08.2011 | 850 | 800 | 640 |
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 08.2009 | 850 | 800 | 610 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 02.2008 | 102 | 95 | 72 |
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 02.2008 | 102 | 95 | 72 |
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 02.2008 | 100 | 95 | 72 |
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 08.2011 | 100 | 95 | 90 |
| HYUNDAI H-1 Cargo (TQ) 2.5 CRDi | since 08.2009 | 100 | 95 | 72 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: VARTA Battery Code: 5954050833132 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B01 Length: 306 Width: 173 Height: 225 |  |
Battery Brand: DETA Battery Code: DB955 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: NPS Battery Code: U540L65B Length: 277 Width: 174 Height: 190 Voltage: 12 V Battery Capacity: 72 AH Cold Cranking Amps (CCA): 610 A |  |

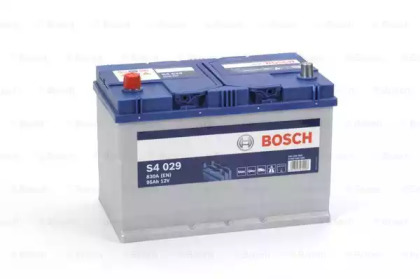

Battery Brand: BOSCH Battery Code: 0 092 S40 290 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Length: 306 Width: 173 Height: 225 Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: VMF Battery Code: 60033 Voltage: 12 V Battery Capacity: 100 AH Height: 220 Width: 173 Length: 303 Cold Cranking Amps (CCA): 740 A Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L47B Length: 302 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA) DIN: 395 A Cold Cranking Amps (CCA): 640 A |  |
