Battery for HYUNDAI i20 (GB)
Compatible Car Batteries for HYUNDAI i20 (GB)
Model years: since 11.2014. Car body type: Hatchback
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| HYUNDAI i20 (GB) 1.2 | since 11.2014 |
7.87” x 6.77” x 8.78” 200 x 172 x 223 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.19” x 6.85” x 7.48” 208 x 174 x 190 mm |
| HYUNDAI i20 (GB) 1.2 | since 11.2014 |
7.87” x 6.77” x 8.78” 200 x 172 x 223 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.19” x 6.85” x 7.48” 208 x 174 x 190 mm |
| HYUNDAI i20 (GB) 1.4 | since 11.2014 |
7.87” x 6.77” x 8.78” 200 x 172 x 223 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.19” x 6.85” x 7.48” 208 x 174 x 190 mm |
| HYUNDAI i20 (GB) 1.1 CRDi | since 11.2014 |
7.87” x 6.77” x 8.78” 243 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
8.19” x 6.85” x 7.48” 208 x 174 x 190 mm |
| HYUNDAI i20 (GB) 1.4 CRDi | since 11.2014 |
7.87” x 6.77” x 8.78” 232 x 175 x 225 mm |
8.15” x 6.89” x 7.48” 230 x 173 x 222 mm |
8.19” x 6.85” x 7.48” 242 x 175 x 190 mm |
| HYUNDAI i20 (GB) 1.0 T-GDI | since 01.2016 |
7.87” x 6.77” x 8.78” 278 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 278 x 175 x 190 mm |
8.19” x 6.85” x 7.48” 278 x 175 x 190 mm |
| HYUNDAI i20 (GB) 1.0 T-GDI | since 01.2016 |
7.87” x 6.77” x 8.78” 278 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 278 x 175 x 190 mm |
8.19” x 6.85” x 7.48” 278 x 175 x 190 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| HYUNDAI i20 (GB) 1.2 | since 11.2014 | 570 | 480 | 360 |
| HYUNDAI i20 (GB) 1.2 | since 11.2014 | 570 | 470 | 360 |
| HYUNDAI i20 (GB) 1.4 | since 11.2014 | 570 | 470 | 360 |
| HYUNDAI i20 (GB) 1.1 CRDi | since 11.2014 | 570 | 480 | 360 |
| HYUNDAI i20 (GB) 1.4 CRDi | since 11.2014 | 620 | 540 | 390 |
| HYUNDAI i20 (GB) 1.0 T-GDI | since 01.2016 | 760 | 760 | 760 |
| HYUNDAI i20 (GB) 1.0 T-GDI | since 01.2016 | 760 | 760 | 760 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| HYUNDAI i20 (GB) 1.2 | since 11.2014 | 55 | 50 | 45 |
| HYUNDAI i20 (GB) 1.2 | since 11.2014 | 55 | 52 | 45 |
| HYUNDAI i20 (GB) 1.4 | since 11.2014 | 55 | 52 | 45 |
| HYUNDAI i20 (GB) 1.1 CRDi | since 11.2014 | 63 | 52 | 45 |
| HYUNDAI i20 (GB) 1.4 CRDi | since 11.2014 | 65 | 60 | 60 |
| HYUNDAI i20 (GB) 1.0 T-GDI | since 01.2016 | 70 | 70 | 70 |
| HYUNDAI i20 (GB) 1.0 T-GDI | since 01.2016 | 70 | 70 | 70 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|

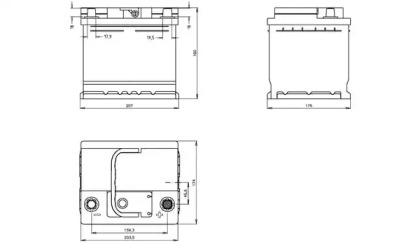

Battery Brand: OPEN PARTS Battery Code: BT055L1.30 Battery Capacity: 55 AH Voltage: 12 V Cold Cranking Amps (CCA): 570 A Length: 207 Width: 175 Height: 190 Hold-down Type: B13 Post Positions: DX |  |

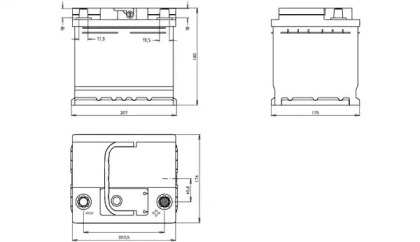

Battery Brand: OPEN PARTS Battery Code: BT050L1.00 Battery Capacity: 50 AH Voltage: 12 V Cold Cranking Amps (CCA): 500 A Length: 207 Width: 175 Height: 190 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: NPS Battery Code: U540L38B Length: 208 Width: 174 Height: 190 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA) DIN: 220 A Cold Cranking Amps (CCA): 360 A |  |
Battery Brand: VARTA Battery Code: 5524000473132 Voltage: 12 V Battery Capacity: 52 AH Cold Cranking Amps (CCA): 470 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 207 Width: 175 Height: 190 |  |
Battery Brand: VARTA Battery Code: 5634000613162 Voltage: 12 V Battery Capacity: 63 AH Cold Cranking Amps (CCA): 610 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 242 Width: 175 Height: 190 |  |
Battery Brand: VARTA Battery Code: 5604080543132 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 242 Width: 175 Height: 190 |  |
Battery Brand: DETA Battery Code: DB604 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: PLATINUM Battery Code: AGM096E Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 760 A Cold Cranking Amps (CCA) DIN: 57001 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Terminal Type: T1 Hold-down Type: B13 Vehicle Equipment: For vehicles with a start-stop system |  |

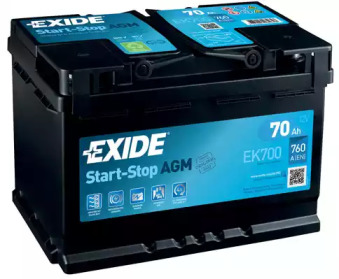

Battery Brand: EXIDE Battery Code: EK700 Cold Cranking Amps (CCA): 760 A Voltage: 12 V Battery Capacity: 70 AH Height: 190 Width: 175 Length: 278 Post Positions: 0 Hold-down Type: B13 |  |

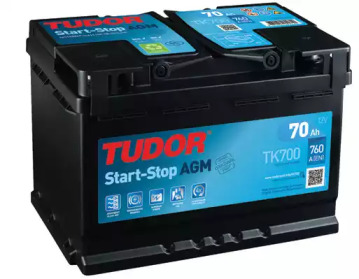

Battery Brand: TUDOR Battery Code: TK700 Voltage: 12 V Battery Capacity: 70 AH Height: 190 Width: 175 Length: 278 Cold Cranking Amps (CCA): 760 A Post Positions: 0 Hold-down Type: B13 |  |
